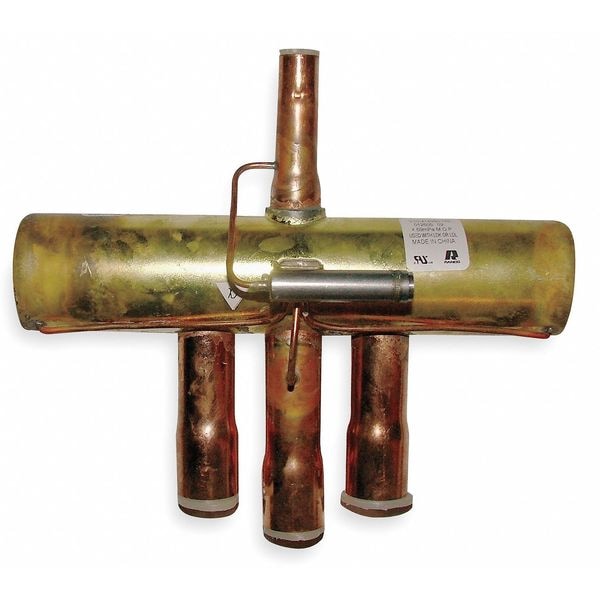

Heat Pump Reversing Valve, 1/2x3/4 In
| Item | Heat Pump Reversing Valve |
|---|---|
| Valve Type | Slide |
| Operation Type | Coil Operated Four Way |
| Suction Tube I.D. | 3/4 in |
| Capacity in Tons (R-502) | 1 to 5.5 |
| Capacity in Tons (R-22) | 1 to 5.5 |
| High Pressure Tube I.D. | 1/2 in |
| Capacity in Tons (R-410A) | 1.3 to 6.7 |
| For Use With | 5AV38 or 5AV39 Coil |
| Standards | UL |
| For Media | CFC, HCFC, HFC |
| Discharge Tube Configuration | Centered |
| R22 Capacity - Maximum | 5.5 ton |
| Includes Solenoid Coil | Solenoid Coil Not Included |
| Suction Connection Type | Socket Weld |
| Tube Material | Copper |
| Operating Pressure - Maximum | 690 psi |
| R22 Capacity - Minimum | 1 ton |
| R410A Capacity - Maximum | 6.7 ton |
| Operating Temperature - Minimum | -40 Degrees F |
| Operating Pressure - Minimum | 0 psi |
| Discharge Connection Type | Socket Weld |
| R410A Capacity - Minimum | 1.3 ton |
| Discharge Connection Size | 1/2 in |
| Application | Heat Pumps |
| Body Material | Brass |
| Suction Connection Size | 3/4 in |
| Suction Tube Configuration | Straight |
| Operating Temperature - Maximum | 158 deg F |
| Body Pattern | Four-Way |
| Leakage Rate - Maximum | 4,000 cc/min |
| Includes Pilot Valve | Pilot Valve Included |
| Type | Coil Operated Four Way |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
