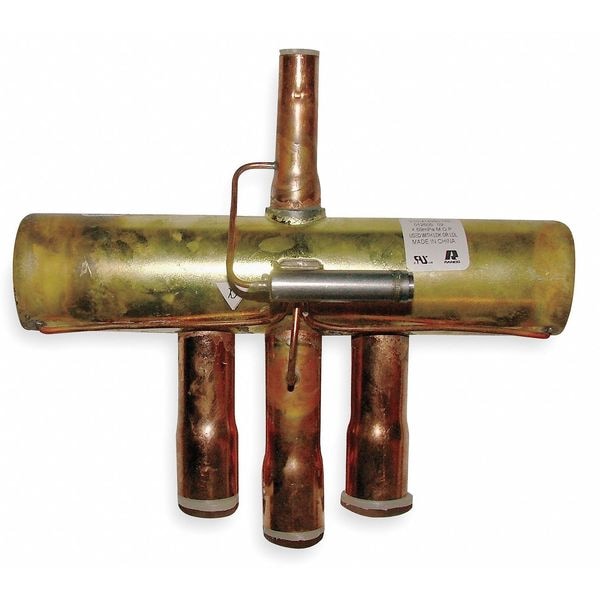

Heat Pump Reversing Valve, 7/8x1-1/8 In
| Item | Heat Pump Reversing Valve |
|---|---|
| Valve Type | Slide |
| Operation Type | Coil Operated Four Way |
| Suction Tube I.D. | 1-1/8 in |
| Capacity in Tons (R-502) | 3 to 11.9 |
| Capacity in Tons (R-22) | 3 to 9.5 |
| High Pressure Tube I.D. | 7/8 in |
| Capacity in Tons (R-410A) | 3.8 to 11.7 |
| For Use With | 5AV38 or 5AV39 Coil |
| Standards | UL |
| R410A Capacity - Maximum | 11.7 ton |
| Discharge Connection Size | 7/8 in |
| R22 Capacity - Minimum | 3 ton |
| For Media | CFC, HCFC, HFC |
| Includes Solenoid Coil | Solenoid Coil Not Included |
| R22 Capacity - Maximum | 9.5 ton |
| R410A Capacity - Minimum | 3.8 ton |
| Operating Temperature - Maximum | 158 deg F |
| Operating Temperature - Minimum | -40 Degrees F |
| Discharge Connection Type | Socket Weld |
| Suction Tube Configuration | Straight |
| Suction Connection Size | 1-1/8 in |
| Tube Material | Copper |
| Body Pattern | Four-Way |
| Suction Connection Type | Socket Weld |
| Includes Pilot Valve | Pilot Valve Included |
| Discharge Tube Configuration | Centered |
| Body Material | Brass |
| Operating Pressure - Maximum | 690 psi |
| Operating Pressure - Minimum | 0 psi |
| Leakage Rate - Maximum | 6,000 cc/min |
| Application | Heat Pumps |
| Type | Coil Operated Four Way |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
