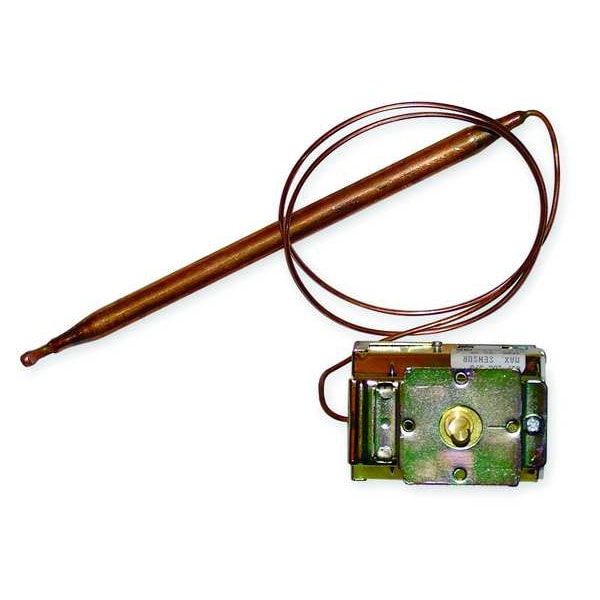

Line Volt Mechanical Thermostat, Closes on Rise, Opens on Rise, On Unit, SPDT, 125 to 277V
| Switch Action | Closes on Rise, Opens on Rise |
|---|---|
| Voltage | 125 to 277V |
| Sensor Type | Hydraulic Capillary Bulb (Stainless Steel) |
| Differential | 3.5 Degrees F |
| Thermostat Control Range | 64 to 101 deg F |
| Mounting Location | On Unit |
| Switch Type | SPDT |
| Width | 2-1/4 in |
| Height | 3 in |
| Locked Rotor Amps @ 240V | 80 A |
| Contact Rating Resistive @ 120V | 25 A |
| Remote Sensing Capability | Yes |
| Control Range | 64 Degrees to 94 Degrees F (Heating), 71 Degrees to 101 Degrees F (Cooling) |
| Thermostat Programmable | No |
| Contact Rating Resistive @ 277V | 16 A |
| Thermostat Item | Line Voltage Mechanical Thermostat |
| Resistive Amps @ 208VAC | 25 A |
| Standards | None |
| Item | Line Volt Mechanical Thermostat |
| Full Load Amps @ 240VAC | 15 A |
| Thermostat Switch Type | SPDT |
| Thermostat Voltage | 120 to 277 V AC |
| Sensing Bulb Length | 8-9/16 in |
| Sensing Bulb Dia. | 3/8 in |
| Thermostat Heating/Cooling | Heating, Cooling |
| Pilot Duty Contacts (VA) | 240 VA |
| Number of Switches | 2 |
| Enclosure Type | None |
| Remote Sensing Bulb Included | Yes |
| Inductive Amps @ 120V | 20 A |
| Full Load Amps @ 120VAC | 15 A |
| Inductive Amps @ 240V | 20 A |
| Depth | 3 in |
| Capillary Length | 26 in |
| Mounting Type | Any Position |
| Mounting | On Unit |
| For Use With | 2-Stage Heat/Cool PTAC and Thru the Wall Units |
| Thermostat Type | Line Voltage Mechanical |
| Full Load Amps | 25A |
| Number of Stages | Dual |
| Application | Heat and Cool |
| Overall Length | 3 in |
| Control Range (F) | 64 to 101 |
| Features | Replace Many OEM Controls on Single Stage Packaged Terminal, Room, Thru-The-Wall Heat/Cool Units |
| Height (In.) | 3 |
| Depth (In.) | 3 |
| Capillary Length (In.) | 26 |
| Type | Remote Bulb Temperature Control |
| Control Type | Exposed Dial |
| Contact Rating | 125 to 277V |
| Full Load Amps @ 240V AC | 20 A |
| Pilot Duty Rating | 240 VA @ 125 to 277V AC |
| Number of Poles | 1 |
| Mounting Direction | Vertical, Horizontal |
| Overall Depth | 3 in |
| Overall Width | 2-1/4 in |
| Temperature Scale | Fahrenheit |
| Changeover Type | Manual |
| Overall Height | 3 in |
| Temperature Control Range | 64 to 101 deg F |
| Temp. Differential High (F) | 3.5 deg F |
| Bulb Dia. (In.) | 3/8 in |
| Bulb Diameter | 3/8 in |
| Maximum Control Temperature | 101 deg F |
| Bulb Length | 8-9/16 in |
| Resistive Amps @ 208V AC | 25 A |
| Number of Heating Stages | 1 |
| Defrost Termination | 64 to 101 deg F |
| Sensor Location | Remote |
| Differential Type | Fixed, Adjustable |
| Number of Cooling Stages | 1 |
| Switch Type/Action | Open, Close, SPDT on Rise |
| Temperature Differential | 3.5 Degrees F |
| Stages | 1H, 1C |
| Full Load Amps @ 120V AC | 15 A |
| Minimum Control Temperature | 64 deg F |
| Capillary Length/Bulb Diameter | 2 1/6 ft Capillary, 8 9/16 in x 3/8 in Bulb |
| Enclosure Material | Steel |
| Full Load Current | 16 A @ 277V, 20 A @ 125V, 20 A @ 240V |
| Cooling Range - Maximum | 101 deg F |
| Temperature Range - Minimum | Not Applicable |
| Heating Range - Maximum | 94 Degrees F |
| Heating Range - Minimum | 64 Degrees F |
| Capillary Type | Bulb |
| Temperature Range - Maximum | Not Applicable |
| Contact Form | SPDT |
| Product Type | Heat/Cool Control |
| Constant Differential | 3.5 deg F |
| Cooling Range - Minimum | 71 deg F |
| Temperature Differential - Maximum | 3.5 deg F |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
