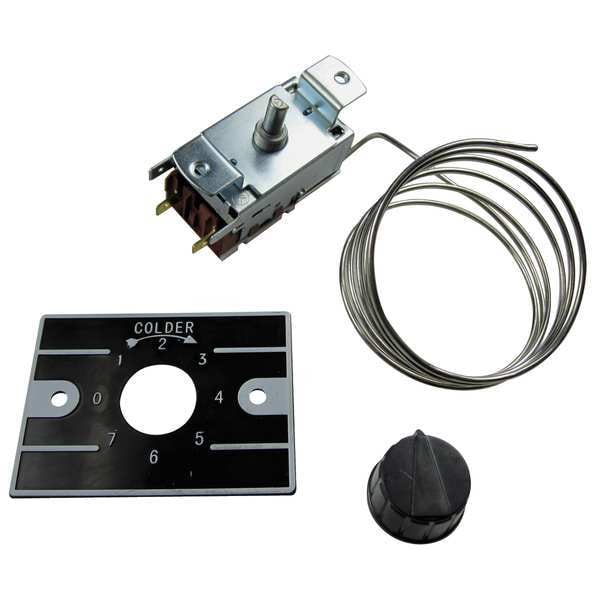

Refrigerator/Freezer Control, SPST, 34 to 55 Degrees F, Closes on Rise, Capillary, 120/240V AC
| Switch Type | Normally Open |
|---|---|
| Switch Action | Closes on Rise |
| Voltage | 120V AC, 240V AC |
| Full Load Amps | 10/6 |
| Item | Refrigeration Control |
| For Use With | Bottle Cabinet |
| Includes | Faceplate, Mounting Hardware |
| Height (In.) | 2-1/2 |
| Warm On | 54.5 |
| Application | Designed for Temperature Cold Control |
| Width (In.) | 1-1/8 |
| Capillary Type | Capillary |
| Locked Rotor Amps | 80 A |
| Depth (In.) | 1-1/8 |
| Normally On (F) | 41 |
| Control Range (F) | 34 to 55 |
| Cold Off | 35 |
| Type | Medium Temp. |
| Capillary Length (In.) | 47-1/4 |
| Capillary Length | 47-1/4 in |
| Contact Form | SPST |
| Warm On Temperature | 55.4 deg F |
| Overall Height | 2-1/2 in |
| Standards | UL, CSA, ENEC |
| Full Load Current | 1.6667 A |
| Normally Off Temperature | 41 deg F |
| Normally On Temperature | 41 deg F |
| Cold Off Temperature | 35.6 deg F |
| Overall Length | 1-1/8 in |
| Product Type | Refrigerator/Freezer Control |
| Control Temperature - Minimum | 34 deg F |
| Cold On Temperature | 41 deg F |
| Control Temperature - Maximum | 55 deg F |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
