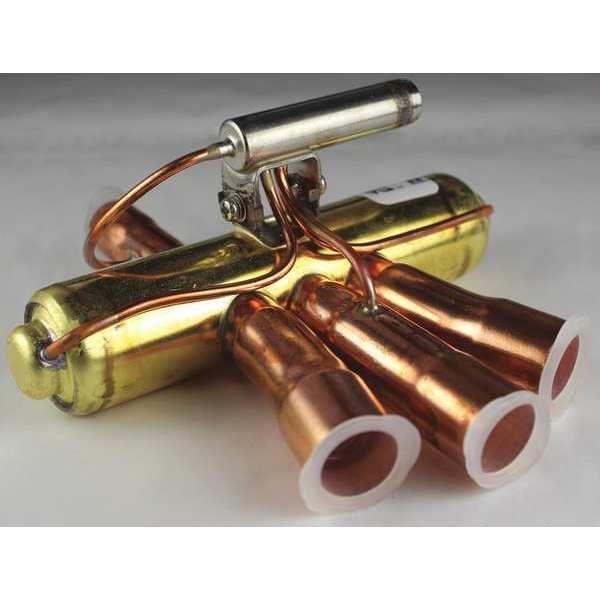

Reversing Valve, 5/8" x 1/2", R22, R410A
| For Use With | Heat Pump Applications: Window Type, Unitary and Split Systems |
|---|---|
| Item | Reversing Valve, 5/8" x 1/2", R22, R410A |
| Fits Brand | Ranco |
| Features | Tube Size Suction: 5/8"; Tube Size High Pressure: 1/2" |
| Application | Heat Pumps |
| Includes Solenoid Coil | Solenoid Coil Not Included |
| R410A Capacity - Maximum | 3.1 ton |
| Discharge Connection Size | 1/2 in |
| Body Material | Brass |
| Suction Connection Size | 5/8 in |
| R22 Capacity - Maximum | 2.8 ton |
| Discharge Tube Configuration | Offset |
| R410A Capacity - Minimum | 1.3 ton |
| Suction Tube Configuration | Flare |
| Leakage Rate - Maximum | 2,000 cc/min |
| Operating Temperature - Maximum | 158 deg F |
| Body Pattern | Four-Way |
| Suction Connection Type | Socket Weld |
| R22 Capacity - Minimum | 1 ton |
| Discharge Connection Type | Socket Weld |
| For Media | CFC, HCFC, HFC |
| Includes Pilot Valve | Pilot Valve Included |
| Operating Temperature - Minimum | -40 deg F |
| Tube Material | Copper |
| Operating Pressure - Maximum | 690 psi |
| Operating Pressure - Minimum | 0 psi |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
