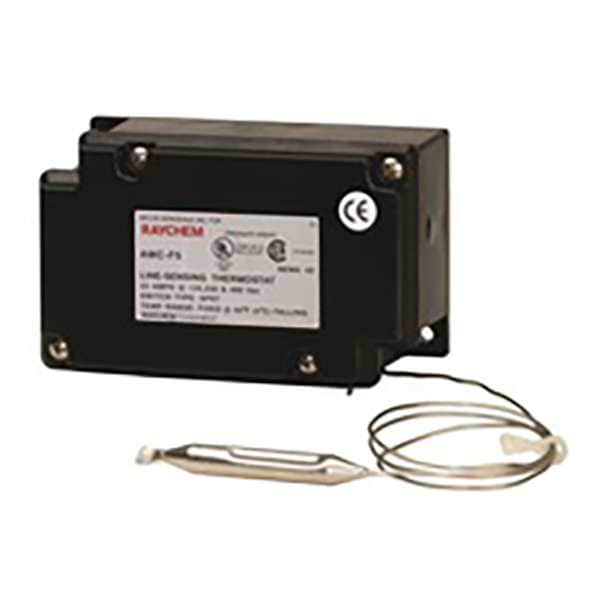

Line Volt Mechanical Tstat, Open on Rise, Indoor/Outdoor, Fixed 40 Degrees F, SPST, 125 to 480V AC
| Switch Action | Open on Rise |
|---|---|
| Voltage | 125 to 480V AC |
| Sensor Type | Hydraulic Capillary Bulb (Copper) |
| Differential | 3 Degrees F |
| Number of Relay Inputs | 0 |
| Thermostat Control Range | Fixed 40 Degrees F |
| Mounting Location | Indoor, Outdoor |
| Switch Type | SPST |
| Color | Gray |
| Width | 5-13/64 in |
| Height | 3-13/64 in |
| Full Load Amps @ 120VAC | 22 A |
| Thermostat Switch Type | SPST |
| Sensing Bulb Length | 3-7/64 in |
| Includes | Remote Sensing Bulb |
| Remote Sensing Capability | Yes |
| Mounting Type | Surface |
| Item | Line Volt Mechanical Tstat |
| Contact Rating Resistive @ 240V | 22 A |
| Number of Switches | 1 |
| Contact Rating Resistive @ 277V | 22 A |
| Thermostat Voltage | 125, 250 to 480V AC |
| Thermostat Programmable | No |
| Capillary Length | 30 in |
| Contact Rating Resistive @ 120V | 22 A |
| Enclosure Type | Plastic NEMA 4X |
| Control Range | Fixed 40 Degrees F |
| Remote Sensing Bulb Included | Yes |
| Standards | CSA Certified, UL Listed |
| Thermostat Heating/Cooling | Heating |
| Depth | 2-1/2 in |
| Full Load Amps @ 240VAC | 22 A |
| Temp. Sensitivity | +/-3 deg F |
| Resistive Amps @ 208VAC | 22 A |
| Thermostat Item | Line Voltage Mechanical Thermostat |
| For Use With | Any hardwired heating cable system |
| Application | Heat Only |
| Number of Relay Outputs | 0 |
| Thermostat Type | Freeze Protection Weatherproof Single-Stage Controls |
| Features | Fixed Set Point Thermostat, Ambient or Line Sensing |
| Operating Temperature Range | -30 to 140 deg F |
| Electrical Connection Type | Hardwired |
| Resistive Amps @ 208V AC | 22 A |
| Temperature Scale | Fahrenheit |
| Sensor Location | Remote |
| Temperature Differential | 3 Degrees F |
| Switch Type/Action | Open, SPST on Rise |
| Temperature Sensitivity | +/-3 deg F |
| Bulb Length | 3-1/8 in |
| Bulb Diameter | 1/4 in |
| Enclosure Material | Plastic |
| Differential Type | Fixed |
| Overall Height | 5-1/4 in |
| Overall Width | 3-1/4 in |
| Temperature Control Range | 40 Degrees F |
| Overall Depth | 2-1/2 in |
| Capillary Length/Bulb Diameter | 2 1/2 ft Capillary, 3 1/8 in x 1/4 in Bulb |
| Minimum Operating Temperature | -30 deg F |
| Mounting Hole Diameter | 3/4 in |
| Enclosure NEMA Rating | 4X |
| Number of Heating Stages | 1 |
| Number of Poles | 1 |
| Full Load Amps @ 120V AC | 22 A |
| System Settings | Fixed Set Point |
| Contact Rating | 125 to 480V AC |
| Stages | 1H |
| Full Load Amps @ 240V AC | 22 A |
| Maximum Operating Temperature | 140 deg F |
| Compatible System Type | Heat Trace |
| Amperage | 22 A |
| Enclosure Color | Gray |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
