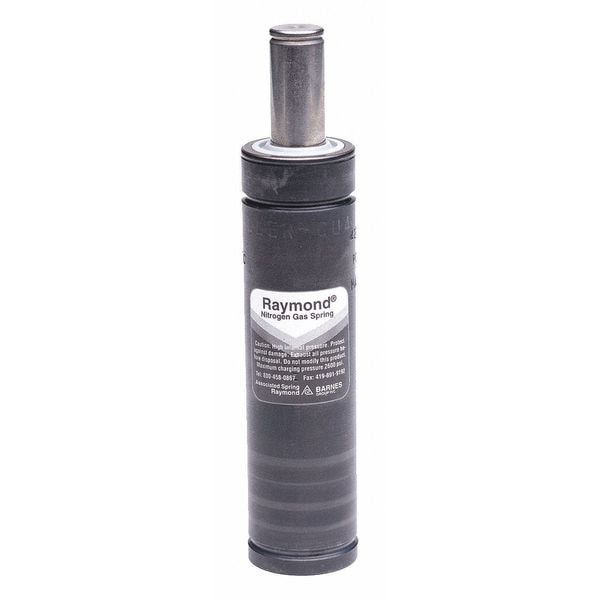

Gas Spring, Carbon Steel, Force 16860 lb.
| Item | Gas Spring |
|---|---|
| Type | Heavy Duty Nitrogen |
| Force | 23,600 lbf |
| Material | Carbon Steel |
| Rod Thread Size | M8 |
| Compressed Length | 150 mm |
| Extended Length | 182 mm |
| Fitting Type | None |
| Locking | No |
| Fixed Resistance | No |
| Adjustable Resistance | No |
| Stroke | 1-1/4 in |
| Cylinder Dia. | 3-3/4 in |
| Standards | PED Approved |
| Finish | Nitride |
| Features | Not Applicable |
| End Fittings Type | None |
| System of Measurement | Inch |
| End Fittings Material | Not Applicable |
| Cylinder Material | Steel |
| Stroke Length | 32 mm |
| Mounting Orientation | Bottom Tapped Holes, Drop-In, Flange, Side Port |
| Operating Temperature - Minimum | 0 deg F |
| Removable End Fittings | Not Applicable |
| Includes End Fittings | End Fitting Not Included |
| Rod Diameter | 55 mm |
| Cylinder Diameter | 95.2 mm |
| Operating Temperature - Maximum | 176 deg F |
| Country of Origin (subject to change) | Sweden |
| Package Quantity | 1 |
