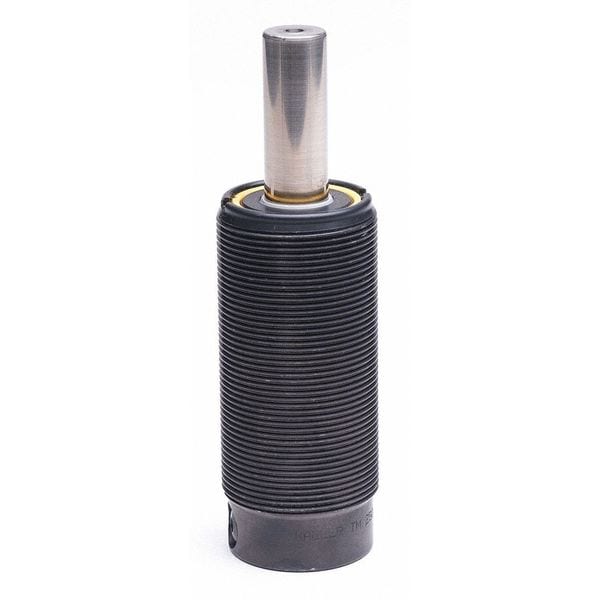

Gas Spring, Carbon Steel, Force 600 lb.
| Item | Gas Spring |
|---|---|
| Type | Heavy Duty Nitrogen |
| Force | 790 lbf |
| Material | Carbon Steel |
| Rod Thread Size | 1 1/2"-12 |
| Compressed Length | 5-1/16 in |
| Extended Length | 8-3/16 in |
| Cylinder Dia. | 1.37 in |
| Fixed Resistance | No |
| Adjustable Resistance | No |
| Stroke | 3.37 in |
| Fitting Type | None |
| Locking | No |
| Standards | PED Approved |
| Operating Temperature - Minimum | 32 deg F |
| End Fittings Material | Not Applicable |
| Mounting Orientation | Flange |
| Cylinder Diameter | 35.4 mm |
| Includes End Fittings | End Fitting Not Included |
| Finish | Black Oxide |
| Operating Temperature - Maximum | 176 deg F |
| Stroke Length | 3-1/8 in |
| End Fittings Type | None |
| Removable End Fittings | Not Applicable |
| Rod Diameter | 15 mm |
| System of Measurement | Inch |
| Cylinder Material | Steel |
| Features | Not Applicable |
| Country of Origin (subject to change) | Sweden |
| Package Quantity | 1 |
