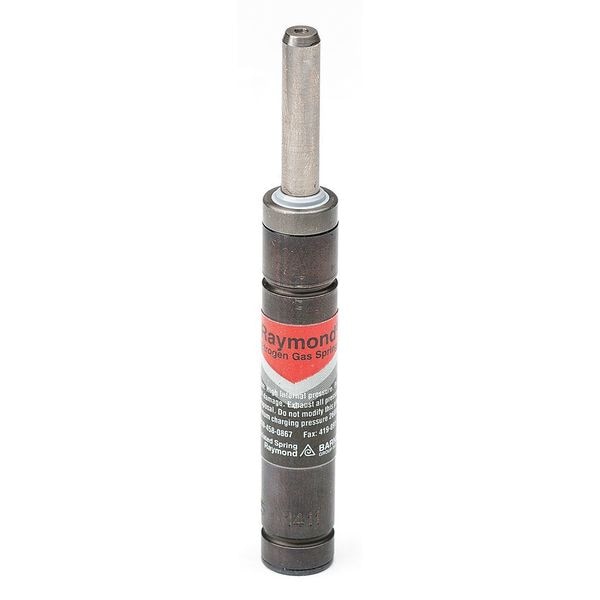

Gas Spring, Standard, Black Oxide, 157 lb.
| Item | Gas Spring |
|---|---|
| Type | Standard |
| Force | 214 lbf |
| Material | Black Oxide |
| Rod Thread Size | M6 |
| Compressed Length | 4-15/64 in |
| Extended Length | 6-45/64 in |
| Fitting Thread Size | M6 |
| Fitting Type | None |
| Locking | No |
| Adjustable Resistance | Yes |
| Fixed Resistance | No |
| Stroke | 2-1/2 in |
| Cylinder Dia. | 3/4 in |
| Rod Dia. | 0.31 in |
| Standards | PED Approved |
| Finish | Black Oxide |
| Features | Not Applicable |
| End Fittings Material | Not Applicable |
| Mounting Orientation | Bottom Tapped Holes, Foot, Top |
| Rod Diameter | 8 mm |
| Stroke Length | 2-15/32 in |
| Includes End Fittings | End Fitting Not Included |
| Force Resistance | Adjustable |
| Operating Temperature - Minimum | 32 deg F |
| End Thread Size | M6 |
| End Fittings Type | None |
| Removable End Fittings | Not Applicable |
| System of Measurement | Inch |
| Operating Temperature - Maximum | 176 deg F |
| Cylinder Diameter | 19 mm |
| Country of Origin (subject to change) | Spain |
| Package Quantity | 1 |
