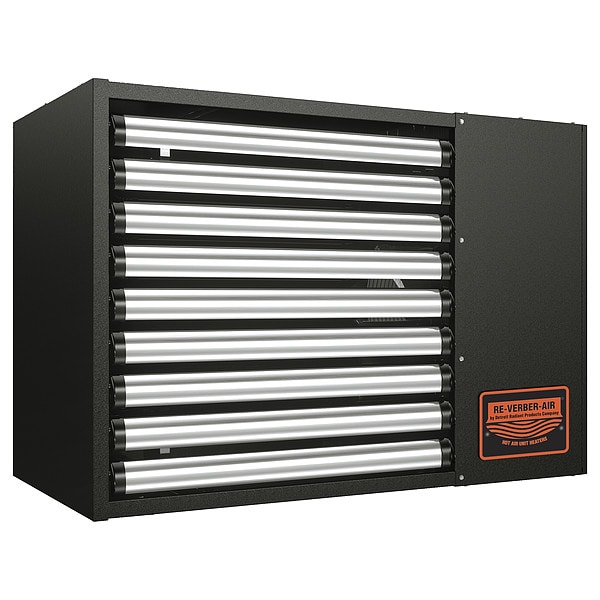

Gas-Fired Unit Heater, Separated, 21"x40
| Combustion Type | Separated |
|---|---|
| Fan Type | Blower |
| Air Flow | 3,000 cfm |
| Item | Gas Wall and Ceiling Unit Heater |
| Thermal Efficiency Rating | 80% |
| Air Temperature Rise | 50 deg F |
| Overall Depth | 20 in |
| Vent Type | Power |
| Heat Exchanger Material | Aluminized Steel |
| Frequency | 60 Hz |
| Mounting Location | Wall |
| Heating Capacity Input | 200,000 BtuH |
| Motor Type | PSC |
| Heater Voltage | 120 V AC |
| Fuel Type | Natural Gas, Propane |
| Fuel Consumption | 190.5 cfh |
| Flue Diameter | 6 in |
| Overall Width | 40 in |
| Features | Operational Indicator Lights; Separated Combustion Standard but Convertible to Power-Vented with No Additional Parts Required; Various Mounting Options |
| Product Type | Unit Heater |
| Manufacturers Warranty Length | 1 yr (Components); 10 yr (Burners); 5 yr (Exchangers) |
| Air Flow Direction | Vertical |
| Phase | 1 |
| Gas Connection Type | NPT |
| Gas Connection Size | 1/2 in |
| Overall Height | 27 in |
| Fan Diameter | 22 in |
| Heating Capacity Output | 160,000 BtuH |
| Profile Type | Low |
| Heat Exchanger Gauge | 18 ga |
| Ignition Type | Direct Spark |
| Mounting Height | 15 to 17 ft |
| Motor Speed | 1,075 rpm |
| Maximum Amperage | 10.7 A |
| Standards | ANSI Z83.8/CSA 2.6 |
| Thermostat Included | Unit-Mounted |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
