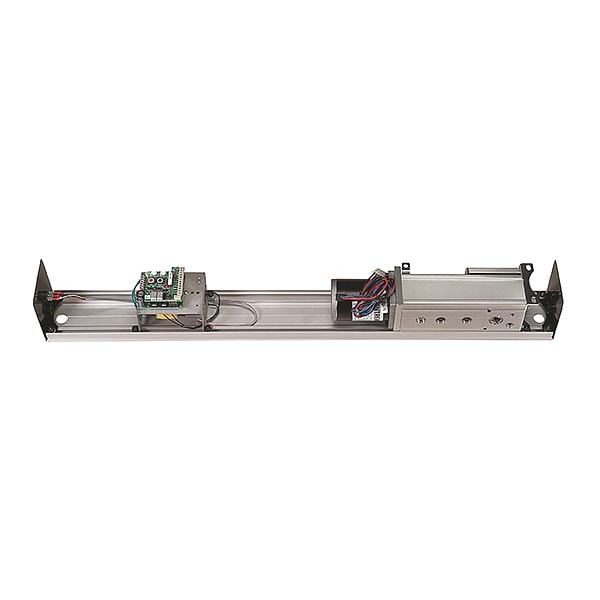

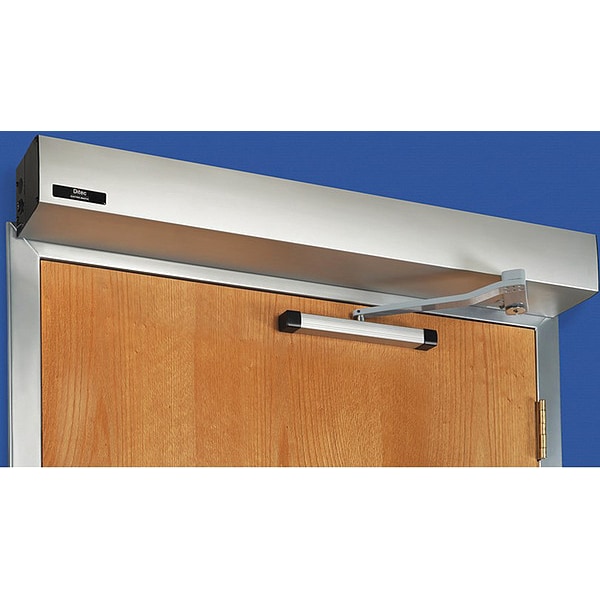

Automatic/Manual, Hydraulic, Entrematic HA8-LP, Door Operator, Interior and Exterior
| Item | Door Operator |
|---|---|
| Closer Mounting Style | Top Frame |
| Closer Series | Entrematic HA8-LP |
| Closer Type | Non Hold Open |
| Finish | Anodized Aluminum |
| Hand Orientation | Non-Handed |
| Housing Depth | 5-1/8 in |
| Housing Height | 4-1/8 in |
| Housing Length | 45 in |
| Interior/Exterior | Interior, Exterior |
| Hydraulic/Pneumatic | Hydraulic |
| Automatic/Manual | Manual, Automatic |
| Standards | ANSI/BHMA A156.19 |
| Mounting Hardware | Included |
| Ligature Resistant | No |
| Power Source | Hardwired |
| Projection from Wall | 5-1/8 in |
| Series | Entrematic HA8-LP |
| Arm Type | Pull Side, Standard |
| Fire Rating - Door Hardware | 3 hr |
| ADA Compliant | Yes |
| Includes | Mounting Hardware |
| Compatible Manufacturer Model Number | Universal |
| Fire Rating | 3 hr |
| Compatible Series | Universal |
| Includes Hardware | Hardware Included |
| Projection | 5-1/8 in |
| Spring Type | Adjustable |
| Ligature-Resistant | Not Ligature-Resistant |
| Compatible Brand | Universal |
| Door Weight - Maximum | 140 lb |
| Door Opening - Minimum | 81 deg |
| Operator Cycles | 500,000 |
| Power Level | Low Energy |
| Length Between Mounting Holes | 43 in |
| Performance Grade | 1 |
| Door Weight - Minimum | Not Applicable |
| ANSI/BHMA Finish | Aluminum Painted |
| Door Opening - Maximum | 110 deg |
| Height Between Mounting Holes | 3-1/8 in |
| Interior/Exterior Use | Interior, Exterior |
| Country of Origin (subject to change) | Canada |
| Package Quantity | 1 |
