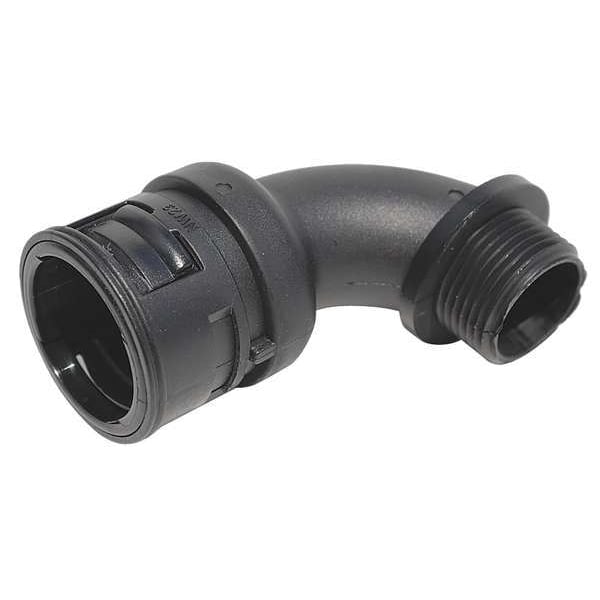

Elbow 90 deg., 1.889 in., Black, Nylon
| Corrugated Tubing Fitting Item | 90 Degrees Elbow |
|---|---|
| Connection Type/Size | 2 in NPT |
| Corrugated Tubing Fitting Color | Black |
| Nominal Size | 2 in |
| Corrugated Tubing Fitting Material | Polyamide 6 |
| Tubing Size | 1.89 in |
| Self Extinguishing | Flame Retardant |
| Color | Black |
| For Use With | Tubing Profiles F, G, and M |
| Temp. Range | -40 to 221 deg F |
| Item | Elbow 90 Degrees |
| IP Rating | 67 |
| Self Extinguising | Yes |
| Standards | ASTM D 2863, DIN 53474, EN 60695, ISO 179/1eA, ISO 4589, ISO 527, UL1696, UL94 |
| Chemical Resistant | Yes |
| Description/Special Features | Free of Cadmium, Halogen, and Phosphor, Wide Range of Applications |
| Min. Operating Temperature | -40 deg F |
| Max. Operating Temperature | 302 deg F |
| Fitting Length | 2.46 in |
| Fitting Height | 2.56 in |
| Fitting Width | 2.56 in |
| Thread Gender | Male |
| Compatible Nominal Size | 2 in |
| Fitting Thread Length | 0.59 in |
| Package Quantity | 1 |
