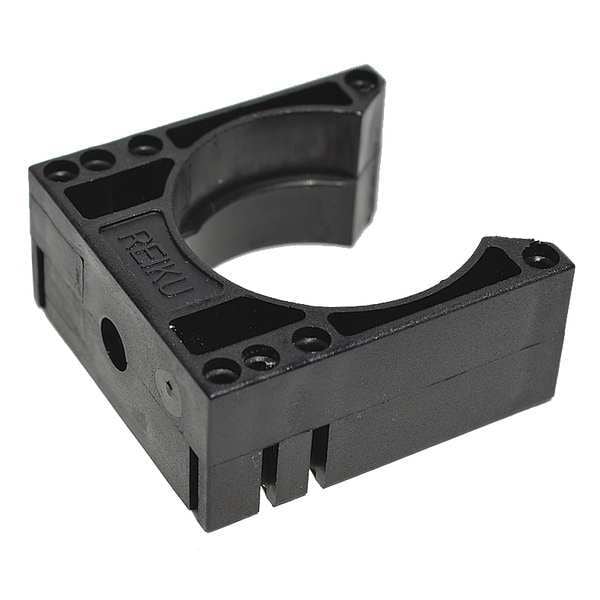

System support, For 36mm Tubing, PK10
| Item | System Support |
|---|---|
| Color | Black |
| Description/Special Features | High Quality Support for Attaching Conduit to Machines, Hoses and Electrical, Robots and Other General Applications when Protecting Wires |
| Corrugated Tubing Fitting Color | Black |
| Corrugated Tubing Fitting Material | Polyamide 6 |
| Corrugated Tubing Fitting Item | System Support |
| Standards | ASTM D 2863, DIN 53474, EN 60695, ISO 179/1eA, ISO 4589, ISO 527, UL94 |
| Temp. Range | -40 to 221 deg F |
| Chemical Resistant | Yes |
| Fitting Height | 2.07 in |
| Tubing Size | 1.417 in |
| Compatible Nominal Size | 1-1/4 in |
| Connection Type/Size | 1 1/4 in Corrugated Tubing |
| Nominal Size | 1-1/4 in |
| Min. Operating Temperature | -40 Degrees F |
| Fitting Length | 0.79 in |
| For Use With | Connecting Pieces, Rail Clips, Tops, Tubing Profiles F, G, and M |
| Fitting Thread Length | Not Applicable |
| Fitting Width | 0.79 in |
| Max. Operating Temperature | 302 deg F |
| Self Extinguishing | Flame Retardant |
| Package Quantity | 10 |
