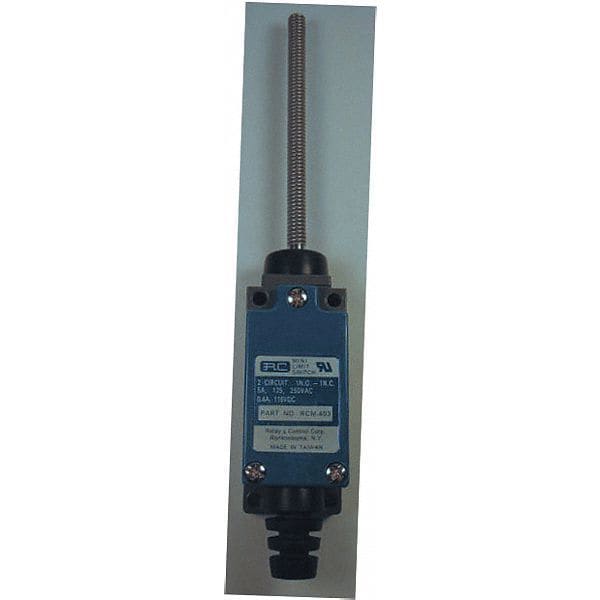

Interruptor de límite, resorte de bobina, palanca oscilante, 1NC/1NO, 5A @ 250V CA, Ubicación del actuador: Superior
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Wobble Stick |
| Actuator Style - Limit Switch | Coil Spring, Wobble Stick |
| Contact Form- Switches | 1NC/1NO |
| Actuator Location - Limit Switch | Top |
| AC Contact Rating - Limit Switch | 5 A @ 250 V |
| Body Style - Limit Switch | Miniature |
| Actuator Style | Coil Spring |
| Mounting Hole Horizontal Center to Center Distance | 21 mm |
| Overtravel | 0.79 in |
| Pretravel | 1.18 in |
| Mounting Hole Vertical Center to Center Distance | 56 mm |
| Arm Length - Minimum | Not Applicable |
| Arm Length - Maximum | Not Applicable |
| Operating Force - Maximum | 90 g-force |
| Package Quantity | 1 |
