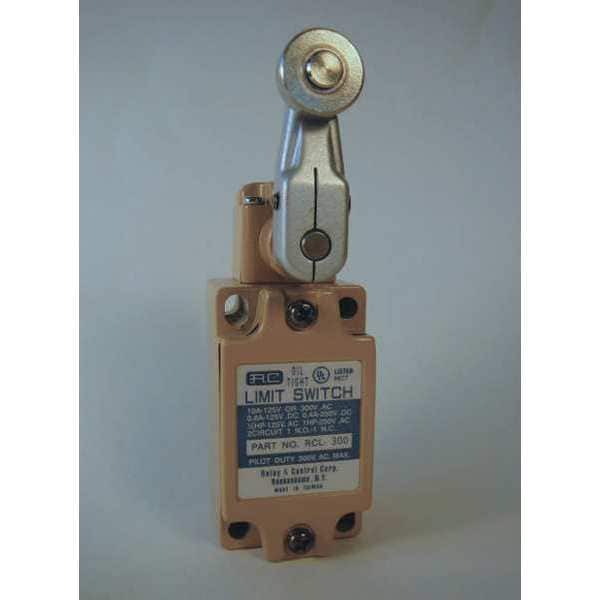

Interruptor de límite, palanca, rodillo, 1NC/1NO, 10A @125V CA, Ubicación del actuador: Lateral.
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Lever |
| Actuator Style - Limit Switch | Lever, Roller |
| Contact Form- Switches | 1NC/1NO |
| Actuator Location - Limit Switch | Side |
| AC Contact Rating - Limit Switch | 10 A @ 125 V |
| Roller Width | 3/4 in |
| Actuator Style | Roller Lever Plunger |
| Differential Travel | 12 Degrees |
| Mounting Hole Horizontal Center to Center Distance | 30 mm |
| Operating Force - Maximum | Not Applicable |
| Arm Adjustability | Fixed |
| Pretravel | 15 Degrees to 20 Degrees |
| Mounting Hole Vertical Center to Center Distance | 59 mm |
| Overtravel | 25 Degrees |
| Operating Torque - Maximum | 3 in-lb |
| Total Travel | 43 Degrees |
| Arm Length - Maximum | 2.12 in |
| Package Quantity | 1 |
