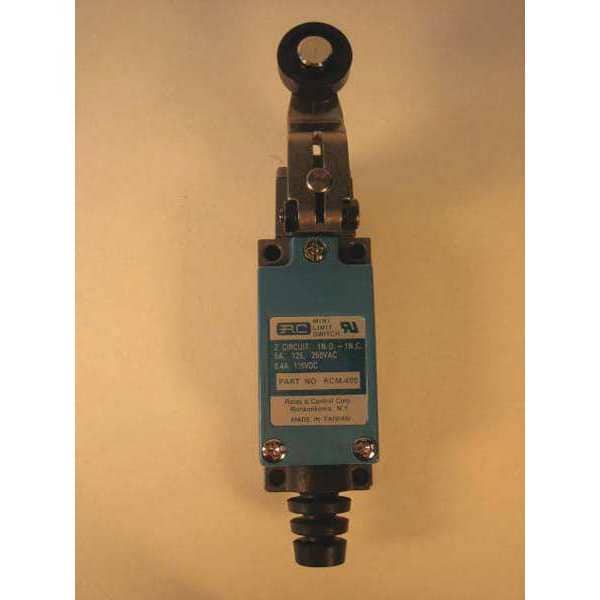

Interruptor de límite, palanca, rodillo, 1NC/1NO, 5A @ 250V AC, Ubicación del actuador: Lateral.
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Lever |
| Actuator Style - Limit Switch | Lever, Roller |
| Contact Form- Switches | 1NC/1NO |
| Actuator Location - Limit Switch | Side |
| AC Contact Rating - Limit Switch | 5 A @ 250 V |
| Body Style - Limit Switch | Miniature |
| Roller Width | 0.69 in |
| Differential Travel | 10 Degrees |
| Actuator Style | Roller Lever Plunger |
| Total Travel | 95 Degrees |
| Operating Force - Maximum | 600 g-force |
| Mounting Hole Vertical Center to Center Distance | 56 mm |
| Overtravel | 75 Degrees |
| Arm Adjustability | Fixed |
| Arm Length - Maximum | 1.91 in |
| Mounting Hole Diameter | 0.22 in |
| Pretravel | 20 Degrees |
| Mounting Hole Horizontal Center to Center Distance | 21 mm |
| Package Quantity | 1 |
