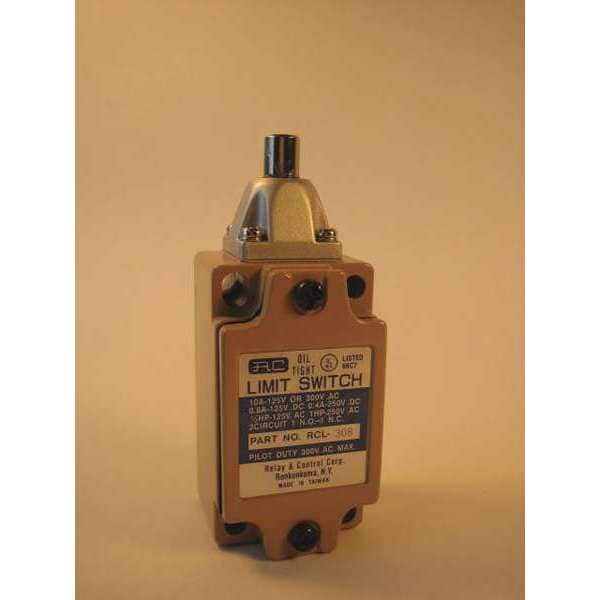

Interruptor de límite, émbolo, varilla de empuje, 1NC/1NO, 10A @125V CA, Ubicación del actuador: Parte superior.
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Plunger |
| Actuator Style - Limit Switch | Plunger, Push Rod |
| Contact Form- Switches | 1NC/1NO |
| Actuator Location - Limit Switch | Top |
| AC Contact Rating - Limit Switch | 10 A @ 125 V |
| Differential Travel | 0.04 in |
| Actuator Style | Push Rod Plunger |
| Roller Width | 3/4 in |
| Operating Force - Maximum | 6 lbf |
| Pretravel | 0.08 in |
| Overtravel | 0.22 in |
| Mounting Hole Horizontal Center to Center Distance | 30 mm |
| Mounting Hole Vertical Center to Center Distance | 59 mm |
| Package Quantity | 1 |
