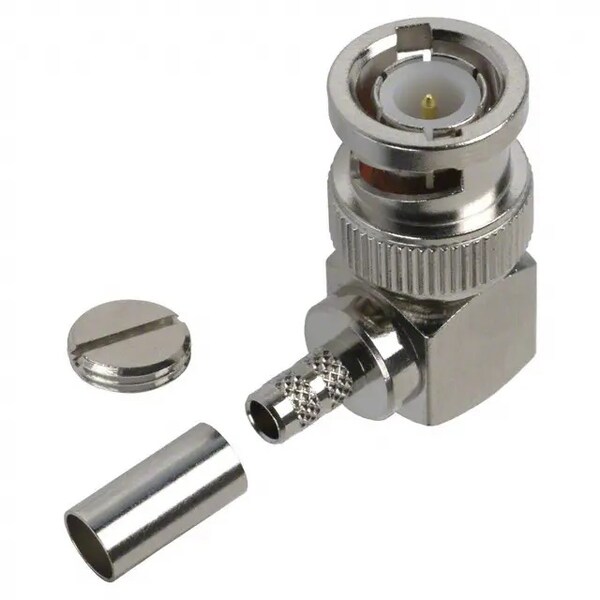

BNC Male RA Coax Connector Components, Bayonet 90° Plug for RG-55, RG-142, RG-223, RG-400 Cbls
| Impedance | 50 ohms |
|---|---|
| Connector Type | Coupling Type |
| Contact Material | brass |
| Operating Frequency | 4 GHz (Maximum) |
| Connection to Cable | Solder & hex crimp |
| Mating Cycles | 500 |
| Voltage Rating | 500 V (Maximum) |
| Body Material | Nickel-plated brass |
| Insulator Material | Polyoxymethylene |
| Gender/Style | Male (Plug), Right angle (90°) |
| Coupling Type | 180°, Bayonet style, 2-slot |
| Temperature Rating | -40°C (-40°F) to 85°C (185°F) |
| Compatible Cable Types | RG-55, RG-142, RG-223, & RG-400 coaxial cables Connection to Cable |
| Package Quantity | 1 |
