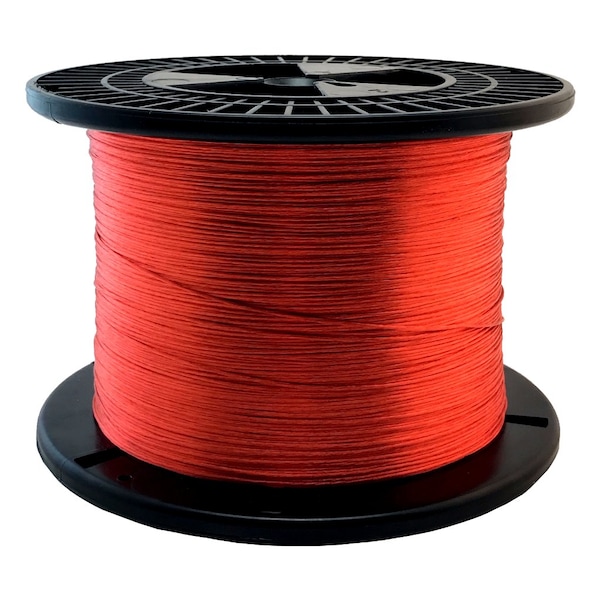

El Alambre Litz de Remington Industries en color rojo cuenta con especificaciones MW 80-C y calibre 20 AWG. Ideal para aplicaciones técnicas que requieren calidad y eficiencia.
| Item | Litz Wire |
|---|---|
| Conductor Material | Copper |
| Trade Designation | MW 80-C |
| Jacket Color | Red |
| Nominal Outside Dia. | 0.042 in |
| Insulation Material | Polyurethane |
| Conductor Design | Stranded |
| Temp. Rating | 155°C |
| Stranding | 64/38 |
| Wire Size | 20 AWG |
| Standards | NEMA MW 80-C |
| Insulation Color | Red |
| Wire Type | Single Build, Unserved Litz Wire |
| Twist Direction | Right Hand Lay |
| Temperature Rating | 155°C (311°F) |
| NEMA Grade | MW 80-C |
| Max. DCR at 20°C (68°F) | 0.01120 Ω/ft; UL Recognized Component (OBMW2 File E190291) |
| Ideal Operating Frequency | Approx. 100 kHz |
| Overall Diameter | 0.042 in |
| Twists Per Foot | 12± 1 TPF |
| Package Quantity | 1 |
