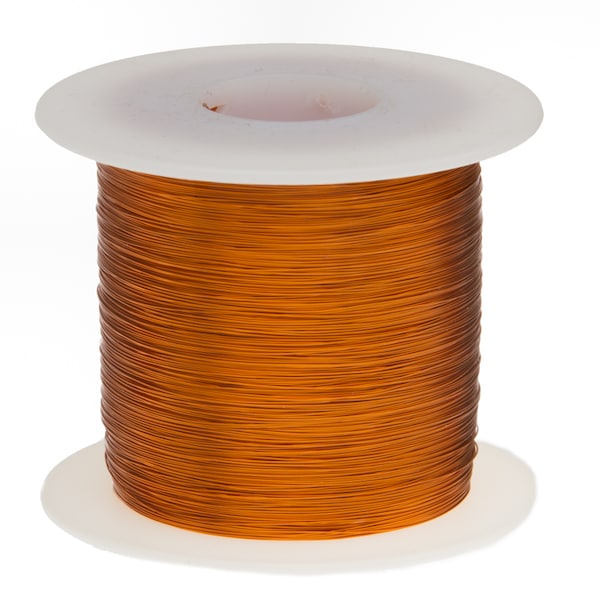

Este alambre magnético de alta calidad MW 35-C en calibre 28 AWG tiene un color natural y es ideal para aplicaciones técnicas que requieren conductividad eficiente.
| Item | Magnet Wire |
|---|---|
| Color | Natural |
| Conductor Material | Copper |
| Trade Designation | MW 35-C |
| Jacket Color | Natural |
| Nominal Outside Dia. | 0.0142 in |
| Insulation Material | Polyester with Polyamideimide Overcoat |
| Conductor Design | Solid |
| Temp. Rating | 200°C |
| Stranding | 1/28 |
| Wire Size | 28 AWG |
| Standards | NEMA MW 35-C |
| Insulation | Polyester with Polyamideimide Overcoat |
| Diameter | 0.0142 in |
| Wire Type | Copper Wire |
| NEMA Description | MW-35-C |
| Build | Heavy Min-Nom |
| Temperature Rating | 200°C (392°F) |
| Package Quantity | 1 |
