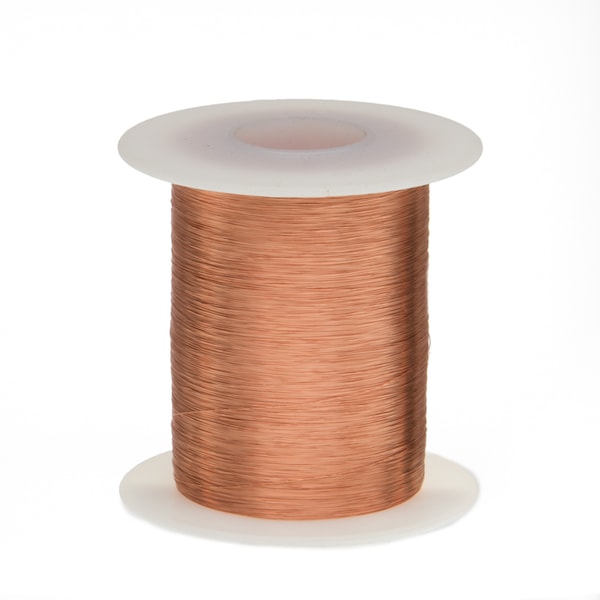

Alambre magnético de alta calidad MW 79-C de Remington Industries, calibre 35 AWG en color rojo. Ideal para aplicaciones donde se requiere conductividad eléctrica y resistencia a altas temperaturas.
| Item | Magnet Wire |
|---|---|
| Color | Red |
| Conductor Material | Copper |
| Trade Designation | MW 79-C |
| Jacket Color | Red |
| Nominal Outside Dia. | 0.0067 in |
| Insulation Material | Polyurethane |
| Type | Enameled Copper Wire |
| Conductor Design | Solid |
| Temp. Rating | 155°C |
| Stranding | 1/35 |
| Wire Size | 35 AWG |
| Standards | NEMA MW 79-C |
| Insulation | Solderable Polyurethane with Polyamide Overcoat |
| Diameter | 0.0067 in |
| Build | Heavy Min-Nom |
| Temperature Rating | 155°C (311°F); 2 oz / 1236'; 4 oz / 2473'; 8 oz / 4946'; 1.0 lb / 9891'; 2.5 lb / 24728'; 5.0 lb / 49455' |
| NEMA Specification | MW 79-C |
| Package Quantity | 1 |
