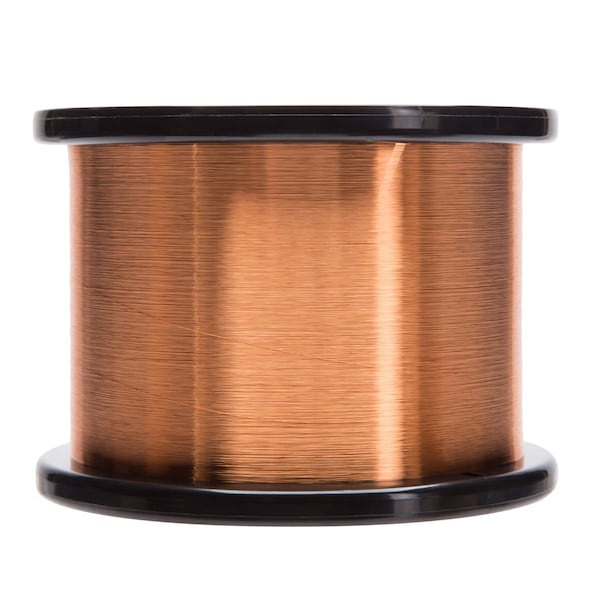

El alambre magnético MW 79-C de Remington Industries viene en calibre 36 AWG y color natural. Ideal para aplicaciones que requieren un alto rendimiento y durabilidad.
| Item | Magnet Wire |
|---|---|
| Conductor Material | Copper |
| Color | Natural |
| Trade Designation | MW 79-C |
| Jacket Color | Natural |
| Nominal Outside Dia. | 0.006 in |
| Insulation Material | Polyurethane |
| Type | Enameled Copper Wire |
| Conductor Design | Solid |
| Temp. Rating | 155°C |
| Stranding | 1/36 |
| Wire Size | 36 AWG |
| Standards | NEMA MW 79-C |
| Diameter | 0.006 in |
| Insulation | Solderable Polyurethane with Polyamide Overcoat |
| Temperature Rating | 155°C (311°F); 2 oz / 1548'; 4 oz / 3095'; 8 oz / 6190'; 1.0 lb / 12380'; 2.5 lb / 30950'; 5.0 lb / 61900' |
| Build | Heavy Min-Nom |
| NEMA Specification | MW 79-C |
| Package Quantity | 1 |
