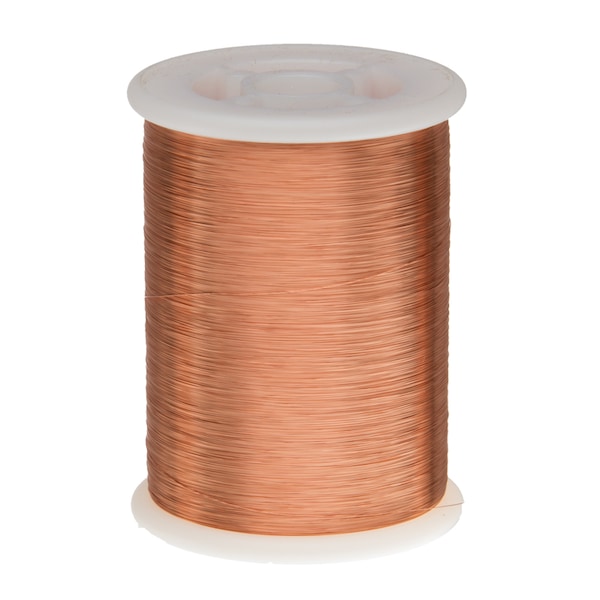

El alambre imantado MW 79-C de Remington Industries es ideal para aplicaciones que requieren un conductor delgado y flexible. Con un calibre de 38 AWG y un color natural, este alambre es fácil de manipular y ofrece un rendimiento excepcional en diversas aplicaciones.
| Item | Magnet Wire |
|---|---|
| Color | Natural |
| Conductor Material | Copper |
| Trade Designation | MW 79-C |
| Jacket Color | Natural |
| Nominal Outside Dia. | 0.0049 in |
| Insulation Material | Polyurethane |
| Type | Enameled Copper Wire |
| Conductor Design | Solid |
| Temp. Rating | 155°C |
| Stranding | 1/38 |
| Wire Size | 38 AWG |
| Standards | NEMA MW 79-C |
| Insulation | Solderable Polyurethane with Polyamide Overcoat |
| Diameter | 0.0049 in |
| Temperature Rating | 155°C (311°F); 2 oz / 2420'; 4 oz / 4840'; 8 oz / 9680'; 1.0 lb / 19360'; 2.5 lb / 48400'; 5.0 lb / 96800' |
| Build | Heavy Min-Nom |
| NEMA Specification | MW 79-C |
| Package Quantity | 1 |
