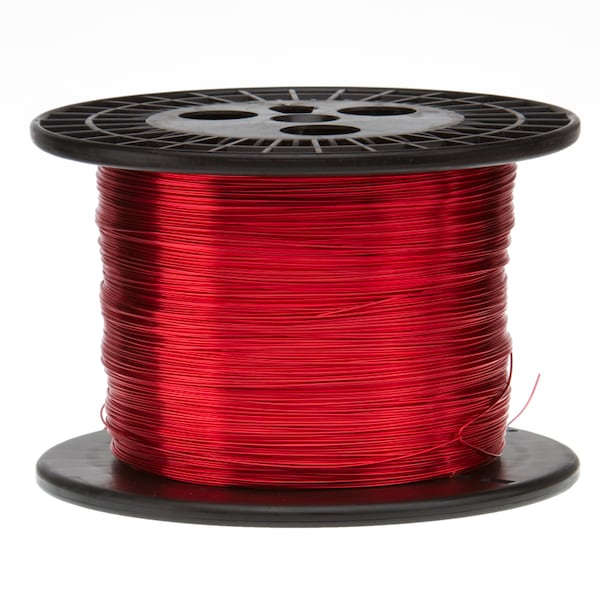

Este Alambre Magnético MW 80-C de Remington Industries es de calibre 14 AWG y color rojo. Ideal para aplicaciones industriales, eléctricas y de bobinado.
| Item | Magnet Wire |
|---|---|
| Color | Red |
| Conductor Material | Copper |
| Trade Designation | MW 80-C |
| Jacket Color | Red |
| Nominal Outside Dia. | 0.0675 in |
| Insulation Material | Polyurethane |
| Type | Enameled Copper Wire |
| Conductor Design | Solid |
| Temp. Rating | 155°C |
| Stranding | 1/14 |
| Wire Size | 14 AWG |
| Standards | NEMA MW 80-C |
| Insulation | Solderable Polyurethane with Polyamide Overcoat |
| Diameter | 0.0675 in |
| NEMA Specification | MW 80-C |
| Build | Heavy Min-Nom |
| Temperature Rating | 155°C (311°F); 2 oz / 9' (14HNSP.125); 4 oz / 19' (14HNSP.25); 8 oz / 39' (14HNSP.5); 1 lb / 79' (14HNSP); 2.5 lbs / 197' (14HNS2.5); 5 lbs / 395' (14HNS); 10 lbs / 790' (14HNS10) |
| Package Quantity | 1 |
