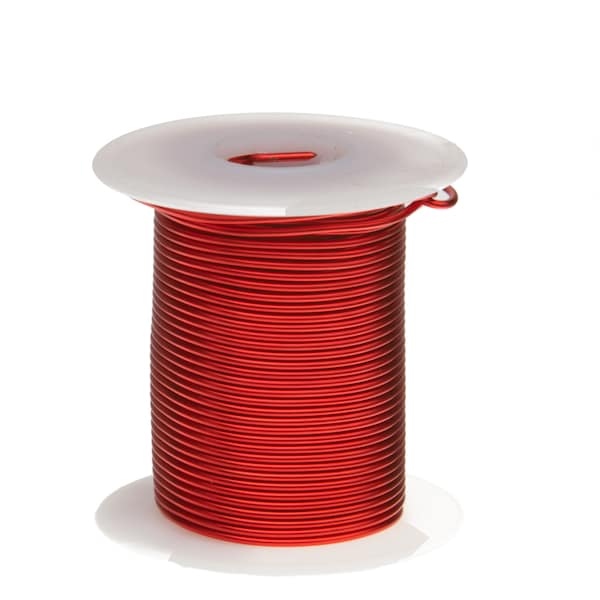

Este alambre magnético de alta calidad es ideal para una variedad de aplicaciones industriales y domésticas. El alambre de calibre 14 AWG en color rojo es duradero y confiable.
| Item | Magnet Wire |
|---|---|
| Color | Red |
| Conductor Material | Copper |
| Trade Designation | MW 80-C |
| Jacket Color | Red |
| Nominal Outside Dia. | 0.0659 in |
| Insulation Material | Polyurethane |
| Type | Enameled Copper Wire |
| Temp. Rating | 155°C |
| Stranding | 1/14 |
| Wire Size | 14 AWG |
| Standards | NEMA MW 80-C |
| Insulation | Solderable Polyurethane with Polyamide Overcoat |
| Diameter | 0.0659 in |
| NEMA Specification | MW 80-C |
| Temperature Rating | 155°C (311°F); 2 oz / 10' (14SNSP.125); 4 oz / 20' (14SNSP.25); 8 oz / 40' (14SNSP.5); 1 lb / 80' (14SNSP); 5 lbs / 400' (14SNS) |
| Build | Single Min-Nom |
| Package Quantity | 1 |
