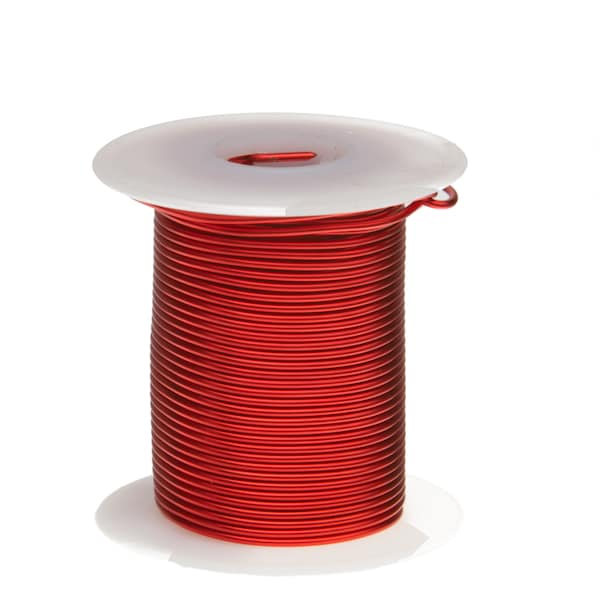

El Alambre Magnético MW 80-C de 16 AWG en color rojo es ideal para aplicaciones industriales y electrónicas. Su alta calidad garantiza un rendimiento efectivo y duradero.
| Item | Magnet Wire |
|---|---|
| Color | Red |
| Conductor Material | Copper |
| Trade Designation | MW 80-C |
| Jacket Color | Red |
| Nominal Outside Dia. | 0.0539 in |
| Insulation Material | Polyurethane |
| Type | Enameled Copper Wire |
| Conductor Design | Solid |
| Temp. Rating | 155°C |
| Stranding | 1/16 |
| Wire Size | 16 AWG |
| Standards | NEMA MW 80-C |
| Insulation | Solderable Polyurethane with Polyamide Overcoat |
| Diameter | 0.0539 in |
| Temperature Rating | 155°C (311°F); 2 oz / 15' (16HNSP.125); 4 oz / 31' (16HNSP.25); 8 oz / 62' (16HNSP.5); 1 lb / 125' (16HNSP); 2.5 lbs / 312' (16HNS2.5); 5 lbs / 625' (16HNS); 10 lbs / 1250' (16HNS10) |
| Build | Heavy Min-Nom |
| NEMA Specification | MW 80-C |
| Package Quantity | 1 |
