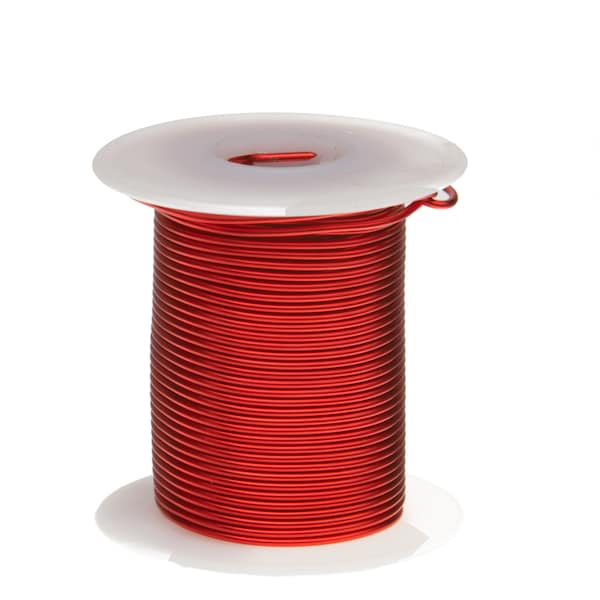

Este alambre magnético de calibre 17 MW 80-C de Remington Industries en color rojo es ideal para diversas aplicaciones. Fabricado con materiales de alta calidad y durabilidad para garantizar un rendimiento óptimo.
| Item | Magnet Wire |
|---|---|
| Conductor Material | Copper |
| Color | Red |
| Trade Designation | MW 80-C |
| Jacket Color | Red |
| Nominal Outside Dia. | 0.0469 in |
| Insulation Material | Polyurethane |
| Temp. Rating | 155°C |
| Stranding | 1/17 |
| Wire Size | 17 AWG |
| Standards | NEMA MW 80-C |
| Diameter | 0.0469 in |
| Wire Type | Copper Wire |
| Insulation | Solderable Polyurethane with Polyamide Overcoat |
| Build | Single Min-Nom |
| NEMA Specification | MW 80-C |
| Temperature Rating | 155°C (311°F); 2 oz / 20' (17SNSP.125); 4 oz / 40' (17SNSP.25); 8 oz / 80' (17SNSP.5); 1 lb / 159' (17SNSP); 5 lbs / 797' (17SNS) |
| Package Quantity | 1 |
