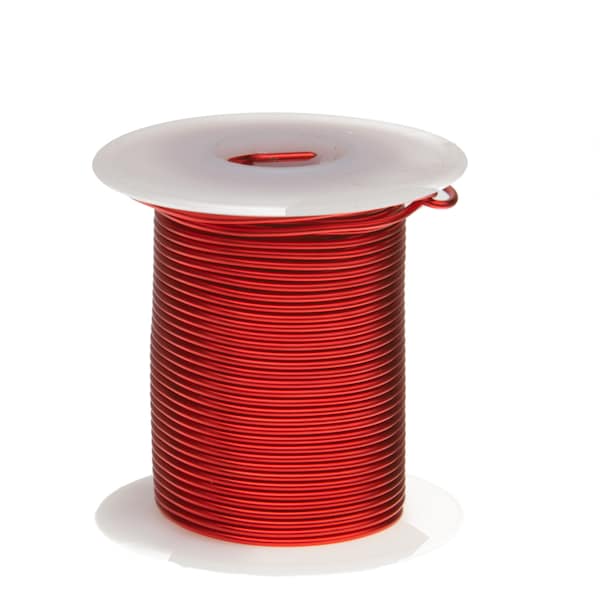

El cable magnético de Remington Industries MW 80-C es ideal para aplicaciones que requieren una transmisión eficiente de energía. Con calibre 20 y color rojo, este cable es duradero y confiable.
| Item | Magnet Wire |
|---|---|
| Color | Red |
| Conductor Material | Copper |
| Trade Designation | MW 80-C |
| Jacket Color | Red |
| Nominal Outside Dia. | 0.0346 in |
| Insulation Material | Polyurethane |
| Type | Enameled Copper Wire |
| Conductor Design | Solid |
| Temp. Rating | 155°C |
| Stranding | 1/20 |
| Wire Size | 20 AWG |
| Standards | NEMA MW 80-C |
| Diameter | 0.0346 in |
| Insulation | Solderable Polyurethane with Polyamide Overcoat |
| NEMA Specification | MW 80-C |
| Temperature Rating | 155°C (311°F); 2 oz / 39' (20HNSP.125); 4 oz / 78' (20HNSP.25); 8 oz / 157' (20HNSP.5); 1 lb / 314' (20HNSP); 2.5 lbs / 785' (20HNS2.5); 5 lbs / 1570' (20HNS); 10 lbs / 3140' (20HNS10) |
| Build | Heavy Min-Nom |
| Package Quantity | 1 |
