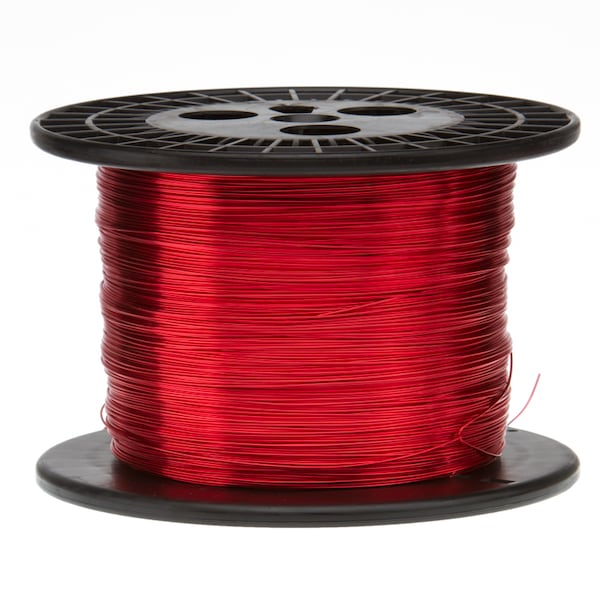

El Alambre Magnético Remington Industries MW 80-C de calibre 20 AWG en color rojo es ideal para aplicaciones que requieren un conductor compacto y confiable.
| Item | Magnet Wire |
|---|---|
| Color | Red |
| Conductor Material | Copper |
| Trade Designation | MW 80-C |
| Jacket Color | Red |
| Nominal Outside Dia. | 0.0335 in |
| Insulation Material | Polyurethane |
| Temp. Rating | 155°C |
| Stranding | 1/20 |
| Wire Size | 20 AWG |
| Standards | NEMA MW 80-C |
| Insulation | Solderable Polyurethane with Polyamide Overcoat |
| Wire Type | Copper Wire |
| Diameter | 0.0335 in |
| NEMA Specification | MW 80-C |
| Build | Single Min-Nom |
| Temperature Rating | 155°C (311°F); 2 oz / 40' (20SNSP.125); 4 oz / 80' (20SNSP.25); 8 oz / 160' (20SNSP.5); 1 lb / 319' (20SNSP); 5 lbs / 1595' (20SNS) |
| Package Quantity | 1 |
