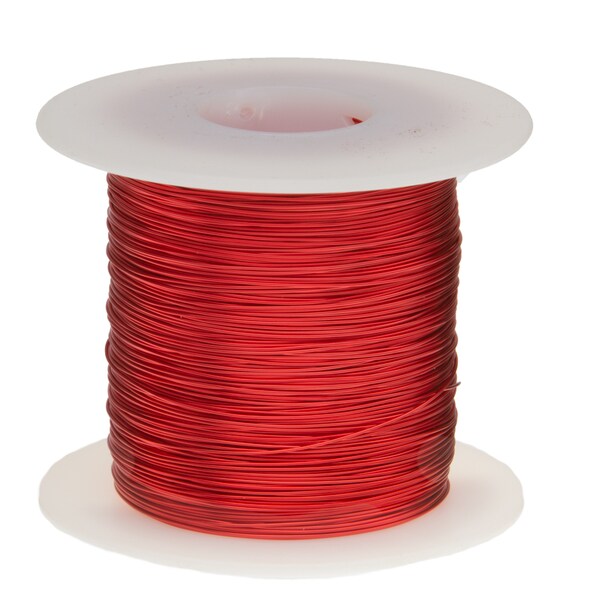

Este alambre magnético de calidad MW 80-C en calibre 22 AWG y color rojo es ideal para aplicaciones técnicas y proyectos de electrónica.
| Item | Magnet Wire |
|---|---|
| Conductor Material | Copper |
| Color | Red |
| Trade Designation | MW 80-C |
| Jacket Color | Red |
| Nominal Outside Dia. | 0.0276 in |
| Insulation Material | Polyurethane |
| Type | Enameled Copper Wire |
| Conductor Design | Solid |
| Temp. Rating | 155°C |
| Stranding | 1/22 |
| Wire Size | 22 AWG |
| Standards | NEMA MW 80-C |
| Insulation | Solderable Polyurethane with Polyamide Overcoat |
| Diameter | 0.0276 in |
| Temperature Rating | 155°C (311°F); 2 oz / 62' (22HNSP.125); 4 oz / 125' (22HNSP.25); 8 oz / 250' (22HNSP.5); 1 lb / 501' (22HNSP); 2.5 lbs / 1252' (22HNS2.5); 5 lbs / 2505' (22HNS); 10 lbs / 5010' (22HNS10) |
| Build | Heavy Min-Nom |
| NEMA Specification | MW 80-C |
| Package Quantity | 1 |
