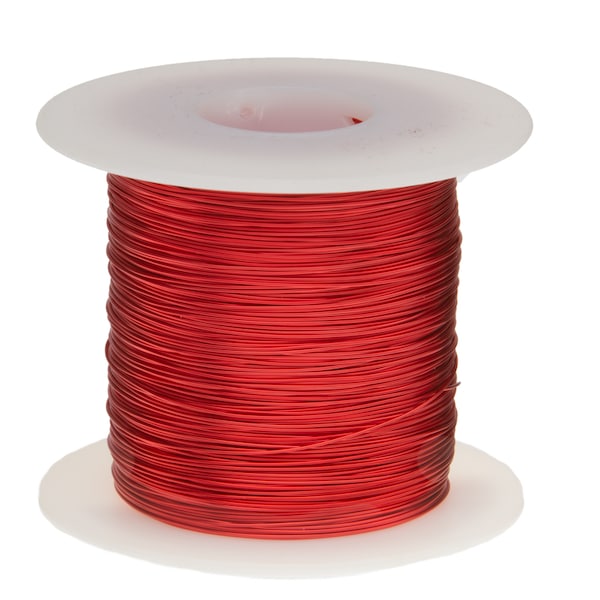

Este alambre magnético de alta calidad de Remington Industries, modelo MW 80-C, cuenta con un calibre de 23 AWG y un color rojo vibrante. Ideal para aplicaciones industriales y de bricolaje.
| Item | Magnet Wire |
|---|---|
| Conductor Material | Copper |
| Color | Red |
| Trade Designation | MW 80-C |
| Jacket Color | Red |
| Nominal Outside Dia. | 0.0249 in |
| Insulation Material | Polyurethane |
| Type | Enameled Copper Wire |
| Conductor Design | Solid |
| Temp. Rating | 155°C |
| Stranding | 1/23 |
| Wire Size | 23 AWG |
| Standards | NEMA MW 80-C |
| Diameter | 0.0249 in |
| Insulation | Solderable Polyurethane with Polyamide Overcoat |
| NEMA Specification | MW 80-C |
| Build | Heavy Min-Nom |
| Temperature Rating | 155°C (311°F); 2 oz / 78'; 4 oz / 156'; 8 oz / 313'; 1.0 lb / 625'; 2.5 lb / 1563'; 5.0 lb / 3125' |
| Package Quantity | 1 |
