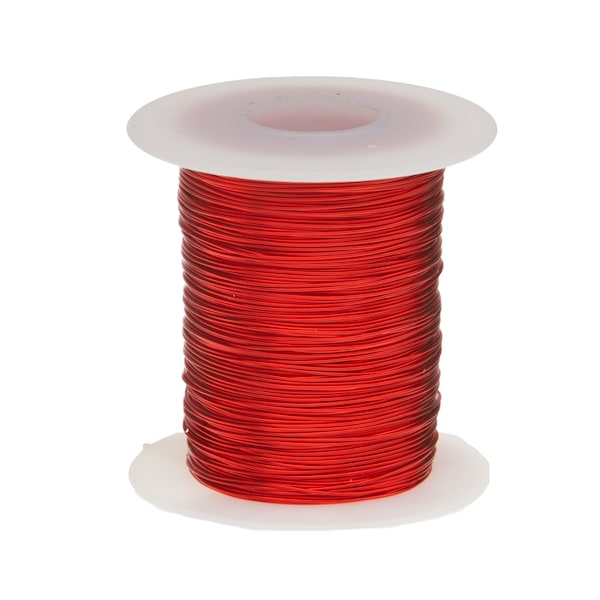

El alambre magnético MW 80-C de Remington Industries es de calibre 23 AWG en color rojo, ideal para aplicaciones que requieren una alta conductividad y resistencia a altas temperaturas.
| Item | Magnet Wire |
|---|---|
| Color | Red |
| Conductor Material | Copper |
| Trade Designation | MW 80-C |
| Jacket Color | Red |
| Nominal Outside Dia. | 0.0239 in |
| Insulation Material | Polyurethane |
| Temp. Rating | 155°C |
| Stranding | 1/23 |
| Wire Size | 23 AWG |
| Standards | NEMA MW 80-C |
| Insulation | Solderable Polyurethane with Polyamide Overcoat |
| Wire Type | Copper Wire |
| Diameter | 0.0239 in |
| Temperature Rating | 155°C (311°F) |
| Build | Single Min-Nom |
| NEMA Specification | MW 80-C |
| Package Quantity | 1 |
