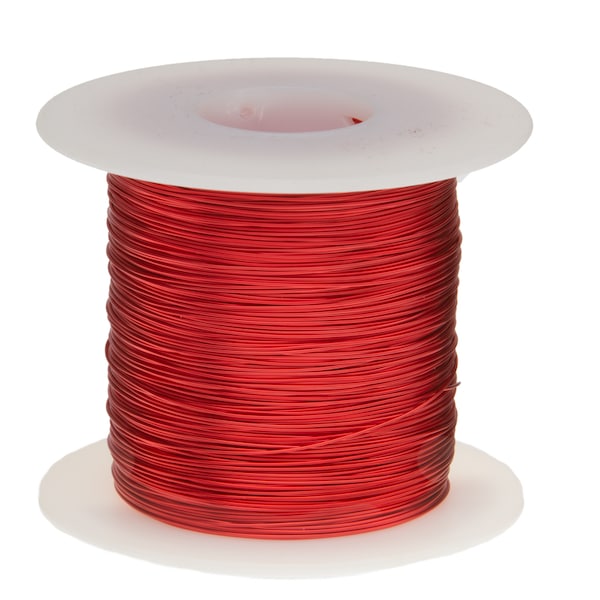

Este alambre magnético de la serie MW 80-C de Remington Industries tiene un calibre de 24 AWG y viene en color rojo. Ideal para aplicaciones que requieren conductividad y resistencia a altas temperaturas.
| Item | Magnet Wire |
|---|---|
| Color | Red |
| Conductor Material | Copper |
| Trade Designation | MW 80-C |
| Jacket Color | Red |
| Nominal Outside Dia. | 0.0223 in |
| Insulation Material | Polyurethane |
| Type | Enameled Copper Wire |
| Conductor Design | Solid |
| Temp. Rating | 155°C |
| Stranding | 1/24 |
| Wire Size | 24 AWG |
| Standards | NEMA MW 80-C |
| Insulation | Solderable Polyurethane with Polyamide Overcoat |
| Diameter | 0.0223 in |
| Temperature Rating | 155°C (311°F); 2 oz / 98' (24HNSP.125); 4 oz / 197' (24HNSP.25); 8 oz / 395' (24HNSP.5); 1 lb / 790' (24HNSP); 2.5 lbs / 1975' (24HNS2.5); 5 lbs / 3950' (24HNS); 10 lbs / 7900' (24HNS10) |
| Build | Heavy Min-Nom |
| NEMA Specification | MW 80-C |
| Package Quantity | 1 |
