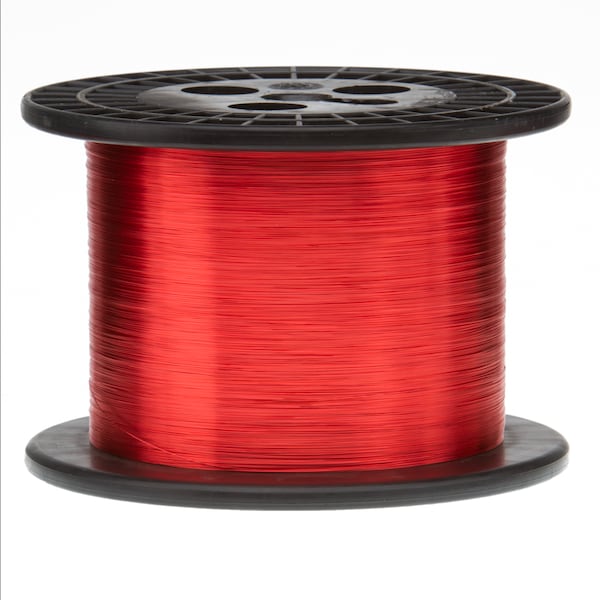

Este alambre magnético MW 80-C de Remington Industries en calibre 27 es ideal para múltiples aplicaciones. En color rojo para fácil identificación, este alambre de alta calidad garantiza un rendimiento óptimo en tus proyectos.
| Item | Magnet Wire |
|---|---|
| Conductor Material | Copper |
| Color | Red |
| Trade Designation | MW 80-C |
| Jacket Color | Red |
| Nominal Outside Dia. | 0.0161 in |
| Insulation Material | Polyurethane |
| Type | Enameled Copper Wire |
| Conductor Design | Solid |
| Temp. Rating | 155°C |
| Stranding | 1/27 |
| Wire Size | 27 AWG |
| Standards | NEMA MW 80-C |
| Diameter | 0.0161 in |
| Insulation | Solderable Polyurethane with Polyamide Overcoat |
| NEMA Specification | MW 80-C |
| Temperature Rating | 155°C (311°F); 2 oz / 196'; 4 oz / 393'; 8 oz / 786'; 1.0 lb / 1571'; 2.5 lb / 3928'; 5.0 lb / 7855' |
| Build | Heavy Min-Nom |
| Package Quantity | 1 |
