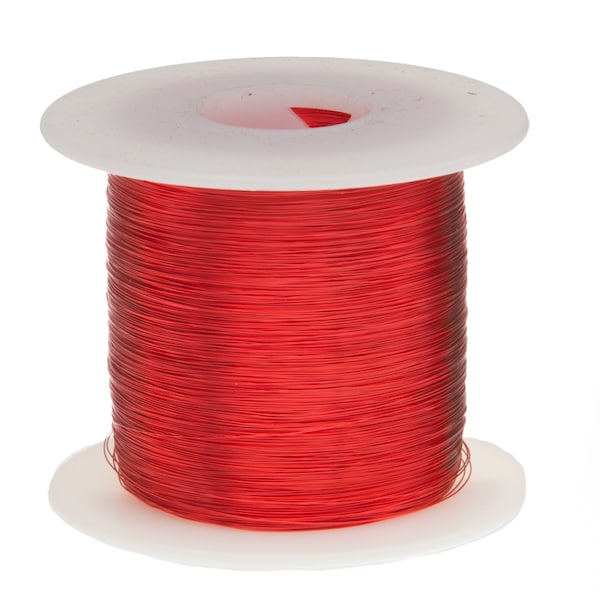

El alambre magnético MW 80-C de Remington Industries en calibre 28 AWG en color rojo es ideal para aplicaciones que requieren un alto rendimiento y resistencia.
| Item | Magnet Wire |
|---|---|
| Color | Red |
| Conductor Material | Copper |
| Trade Designation | MW 80-C |
| Jacket Color | Red |
| Nominal Outside Dia. | 0.0144 in |
| Insulation Material | Polyurethane |
| Type | Enameled Copper Wire |
| Conductor Design | Solid |
| Temp. Rating | 155°C |
| Stranding | 1/28 |
| Wire Size | 28 AWG |
| Standards | NEMA MW 80-C |
| Diameter | 0.0144 in |
| Insulation | Solderable Polyurethane with Polyamide Overcoat |
| Temperature Rating | 155°C (311°F); 2 oz / 248' (28HNSP.125); 4 oz / 497' (28HNSP.25); 8 oz / 994' (28HNSP.5); 1 lb / 1989' (28HNSP); 2.5 lbs / 4972' (28HNS2.5); 5 lbs / 9945' (28HNS); 10 lbs / 19890' (28HNS10) |
| Build | Heavy Min-Nom |
| NEMA Specification | MW 80-C |
| Package Quantity | 1 |
