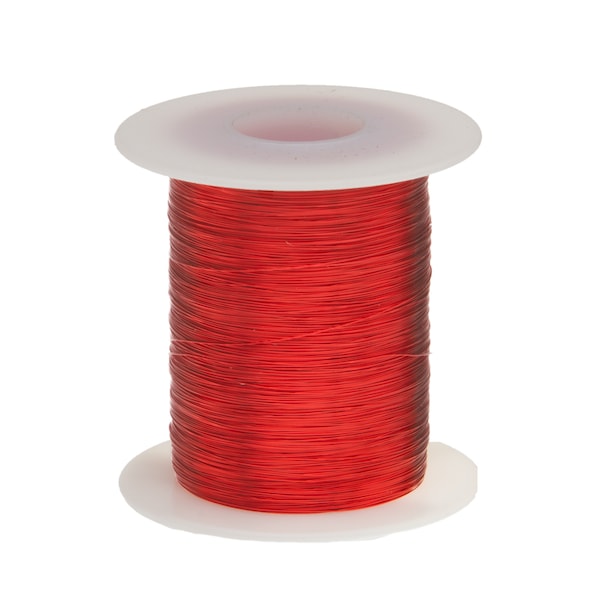

Este alambre magnético de la marca Remington Industries es de calibre 32 AWG y color rojo. Perfecto para aplicaciones industriales y domésticas.
| Item | Magnet Wire |
|---|---|
| Conductor Material | Copper |
| Color | Red |
| Trade Designation | MW 80-C |
| Jacket Color | Red |
| Nominal Outside Dia. | 0.0095 in |
| Insulation Material | Polyurethane |
| Type | Enameled Copper Wire |
| Conductor Design | Solid |
| Temp. Rating | 155°C |
| Stranding | 1/32 |
| Wire Size | 32 AWG |
| Standards | NEMA MW 80-C |
| Diameter | 0.0095 in |
| Insulation | Solderable Polyurethane with Polyamide Overcoat |
| NEMA Specification | MW 80-C |
| Build | Heavy Min-Nom |
| Temperature Rating | 155°C (311°F); 2 oz / 610' (32HNSP.125); 4 oz / 1221' (32HNSP.25); 8 oz / 2442' (32HNSP.5); 1 lb / 4885' (32HNSP); 2.5 lbs / 12212' (32HNS2.5); 5 lbs / 24425' (32HNS); 10 lbs / 48850' (32HNS10) |
| Package Quantity | 1 |
