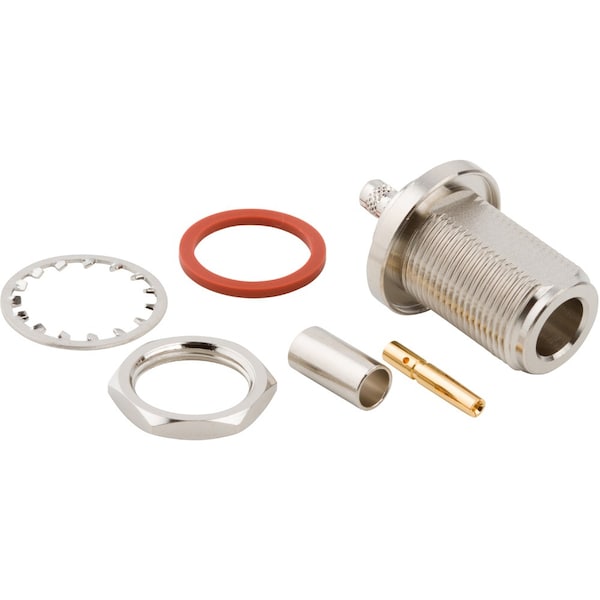

N-Type Female Bulkhead Coax Connector, Thread Pnl Mnt Jack for RG-58, RG-141, RG-303, LMR-195 Cbls
| Connector Type | Coupling Type |
|---|---|
| Operating Frequency | 11 GHz (Maximum) |
| Gender/Style | Female (Jack), Bulkhead rear panel mount (3/4" hex nut) |
| Impedance | 50 ohms |
| Voltage Rating | 1,500 V (Maximum) |
| Insulator Material | Polytetrafluoroethylene |
| Compatible Cable Types | RG-58, RG-58A, RG-58B, RG-58C, RG-141, RG-303, LMR-195, Belden 9907, Belden B7806A coaxial cables Connection to Cable |
| Contact Material | Gold-plated phosphor bronze |
| Connection to Cable | Solder & hex crimp |
| Body Material | Nickel-plated brass |
| Temperature Rating | -65°C (-85°F) to 165°C (329°F) |
| Coupling Type | 5/8" - 24 UNEF thread |
| Mating Cycles | 500 |
| Package Quantity | 1 |
