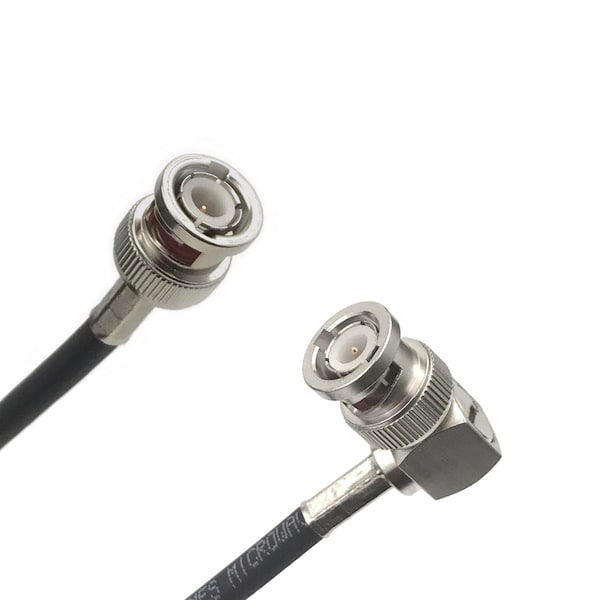

El ensamble de cable coaxial RG-223 cuenta con conectores BNC (macho) a BNC (macho RA), con una impedancia de 50 Ohmios y una longitud de 15 pies. Ideal para aplicaciones que requieren una alta calidad de transmisión de señal.
| Impedance | 50 ohms |
|---|---|
| Gender | Male |
| Voltage Rating | 500 V Maximum |
| Temperature Rating | -40°C to 85°C |
| Operating Frequency | 4 GHz |
| Style | Straight, Right angle |
| Connector A Type | BNC |
| Body Material | Nickel-plated brass |
| Jacket | Black PVC (non-contaminating), Type IIA per MIL-C-17 |
| Overall Diameter | 0.212 in |
| Mating Cycles | 500 |
| Contact Material | Brass |
| Connector B Type | BNC Gender |
| Cable Type | RG-223/U Coaxial |
| Package Quantity | 1 |
