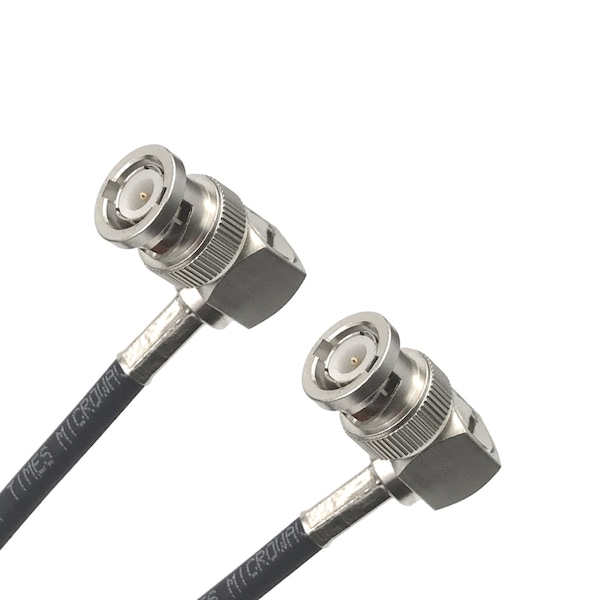

Este ensamble de cable coaxial RG-223 cuenta con conectores BNC macho (ángulo recto) a BNC macho (ángulo recto), con una impedancia de 50 ohmios y una longitud de 4 pies. Ideal para aplicaciones de transmisión de señales de alta frecuencia.
| Impedance | 50 ohms |
|---|---|
| Operating Frequency | 4 GHz |
| Overall Diameter | 0.212 in |
| Style | Right angle |
| Temperature Rating | -40°C to 85°C |
| Voltage Rating | 500 V Maximum |
| Cable Type | RG-223/U Coaxial |
| Jacket | Black PVC (non-contaminating), Type IIA per MIL-C-17 |
| Connector A Type | BNC |
| Contact Material | Brass |
| Gender | Male |
| Body Material | Nickel-plated brass |
| Mating Cycles | 500 |
| Connector B Type | BNC Gender |
| Package Quantity | 1 |
