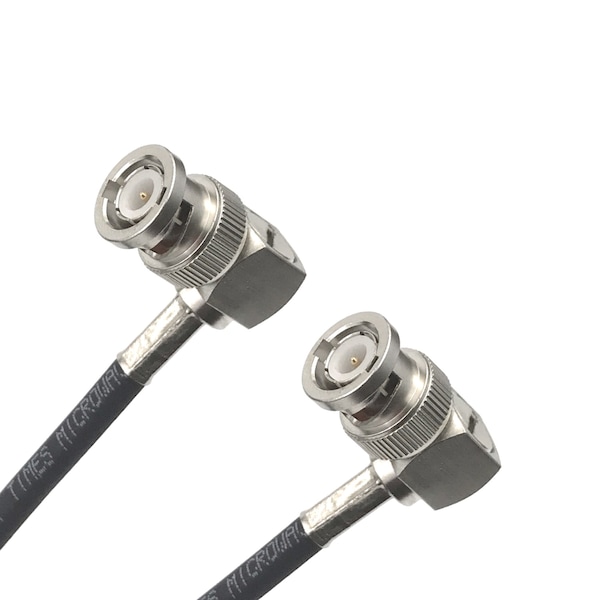

Este cable de coaxial RG-223 tiene conectores BNC macho angulados en ambos extremos, con una impedancia de 50 Ohmios y una longitud de 5 pies. Ideal para conexiones de alta calidad en aplicaciones de comunicaciones.
| Impedance | 50 ohms |
|---|---|
| Style | Right angle |
| Overall Diameter | 0.212 in |
| Temperature Rating | -40°C to 85°C |
| Gender | Male |
| Body Material | Nickel-plated brass |
| Jacket | Black PVC (non-contaminating), Type IIA per MIL-C-17 |
| Cable Type | RG-223/U Coaxial |
| Contact Material | Brass |
| Voltage Rating | 500 V Maximum |
| Connector A Type | BNC |
| Mating Cycles | 500 |
| Operating Frequency | 4 GHz |
| Connector B Type | BNC Gender |
| Package Quantity | 1 |
