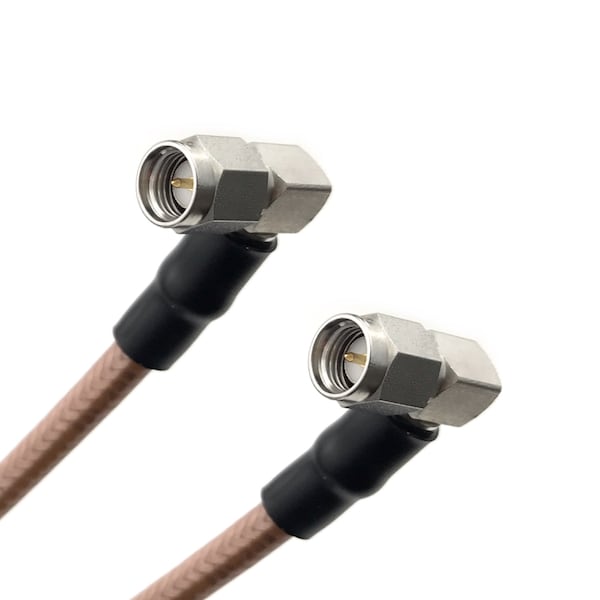

RG-400 Coax Cbl Assmbly w/SMA (Male RA) to SMA (Male RA) Cnnctrs, 50 Ohm Impedance, 15FT Lngth
| Impedance | 50 ohms |
|---|---|
| Voltage Rating | 500 V Maximum |
| Connector A Type | SubMiniature version A |
| Jacket | Tan FEP, Type IX per MIL-C-17 |
| Temperature Rating | -55°C to 165°C |
| Cable Type | RG-400/U Coaxial |
| Style | Right angle |
| Connector B Type | SubMiniature version A Gender |
| Operating Frequency | 12.4 GHz |
| Mating Cycles | 100 |
| Body Material | stainless steel |
| Overall Diameter | 0.195 in |
| Contact Material | Gold-plated beryllium copper |
| Gender | Male |
| Bend Radius | 1.0" |
| Package Quantity | 1 |
