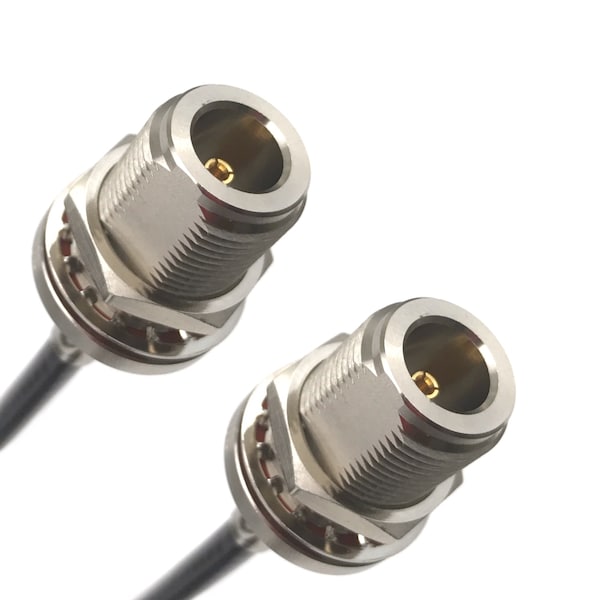

Este cable de coaxial RG-58C de 10 pies es ideal para aplicaciones que requieren una conexión segura y de alta calidad. Con conectores N-Type hembra a N-Type hembra y una impedancia de 50 ohmios, garantiza un rendimiento óptimo en todo momento.
| Impedance | 50 ohms |
|---|---|
| Gender | Female |
| Mating Cycles | 500 |
| Temperature Rating | -40°C to 80°C |
| Bend Radius | 2.0" |
| Style | Bulkhead panel mount |
| Operating Frequency | 5 GHz |
| Overall Diameter | 0.195 in |
| Contact Material | Gold-plated phosphor bronze |
| Jacket | Black PVC (non-contaminating), Type IIA per MIL-C-17 |
| Cable Type | RG-58C/U Coaxial |
| Body Material | Nickel-plated brass |
| Connector B Type | N connector Gender |
| Connector A Type | N connector |
| Voltage Rating | 1500 V Maximum |
| Package Quantity | 1 |
