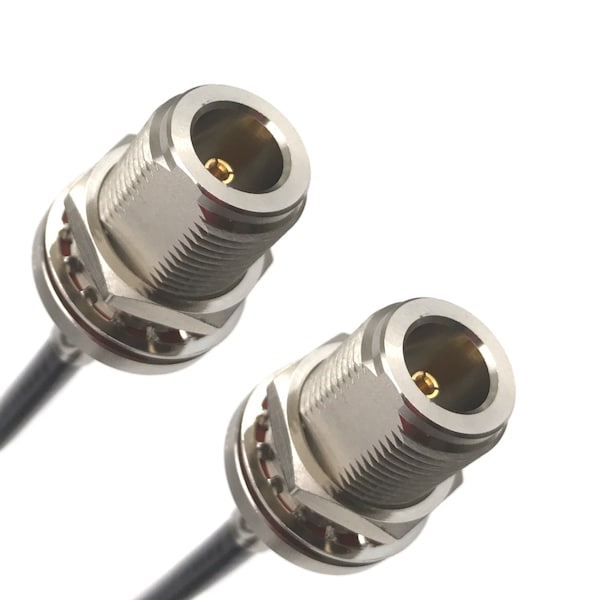

Este cable de coaxial RG-58C cuenta con conectores N-Hembra a N-Hembra, con una impedancia de 50 Ohms y una longitud de 12 pies. Ideal para aplicaciones de radiofrecuencia y telecomunicaciones.
| Impedance | 50 ohms |
|---|---|
| Cable Type | RG-58C/U Coaxial |
| Bend Radius | 2.0" |
| Body Material | Nickel-plated brass |
| Style | Bulkhead panel mount |
| Jacket | Black PVC (non-contaminating), Type IIA per MIL-C-17 |
| Operating Frequency | 5 GHz |
| Mating Cycles | 500 |
| Temperature Rating | -40°C to 80°C |
| Contact Material | Gold-plated phosphor bronze |
| Connector B Type | N connector Gender |
| Voltage Rating | 1500 V Maximum |
| Gender | Female |
| Overall Diameter | 0.195 in |
| Connector A Type | N connector |
| Package Quantity | 1 |
