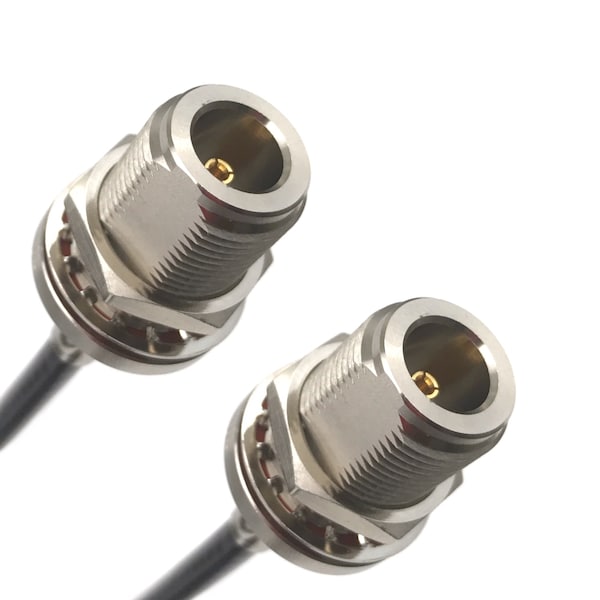

RG-58C Coax Cbl Assmbly w/N-Type (Female ) to N-Type (Female ) Cnnctrs, 50 Ohm Impedance, 50FT Lnth
| Impedance | 50 ohms |
|---|---|
| Cable Type | RG-58C/U Coaxial |
| Jacket | Black PVC (non-contaminating), Type IIA per MIL-C-17 |
| Voltage Rating | 1500 V Maximum |
| Overall Diameter | 0.195 in |
| Mating Cycles | 500 |
| Contact Material | Gold-plated phosphor bronze |
| Gender | Female |
| Connector A Type | N connector |
| Temperature Rating | -40°C to 80°C |
| Body Material | Nickel-plated brass |
| Bend Radius | 2.0" |
| Style | Bulkhead panel mount |
| Connector B Type | N connector Gender |
| Operating Frequency | 5 GHz |
| Package Quantity | 1 |
