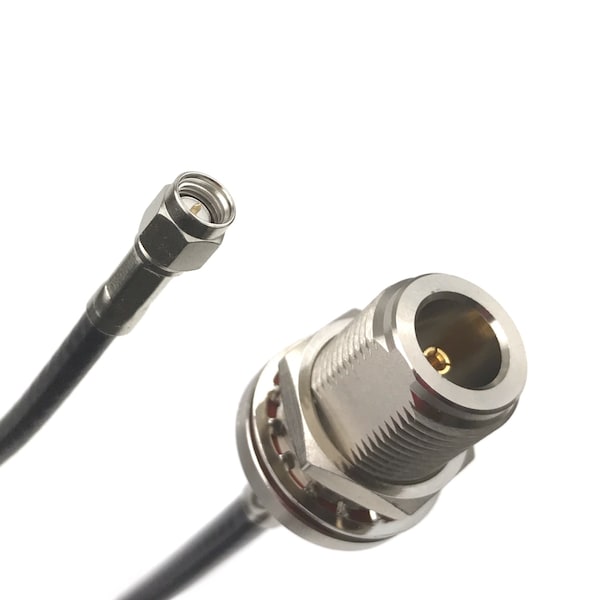

Este cable RG-58C de 12 pies de longitud cuenta con un ensamblaje de conectores SMA (macho) a N-Type (hembra) y tiene una impedancia de 50 Ohm. Es ideal para aplicaciones que requieren una conexión estable y de alta calidad.
| Impedance | 50 ohms |
|---|---|
| Bend Radius | 2.0" |
| Operating Frequency | 5 GHz |
| Voltage Rating | 500 V Maximum |
| Connector B Type | N connector Gender |
| Contact Material | Brass, Gold-plated phosphor bronze |
| Cable Type | RG-58C/U Coaxial |
| Temperature Rating | -40°C to 80°C |
| Jacket | Black PVC (non-contaminating), Type IIA per MIL-C-17 |
| Connector A Type | SubMiniature version A |
| Body Material | Nickel-plated brass |
| Overall Diameter | 0.195 in |
| Gender | Female, Male |
| Mating Cycles | 500, 100 |
| Style | Straight, Bulkhead panel mount |
| Package Quantity | 1 |
