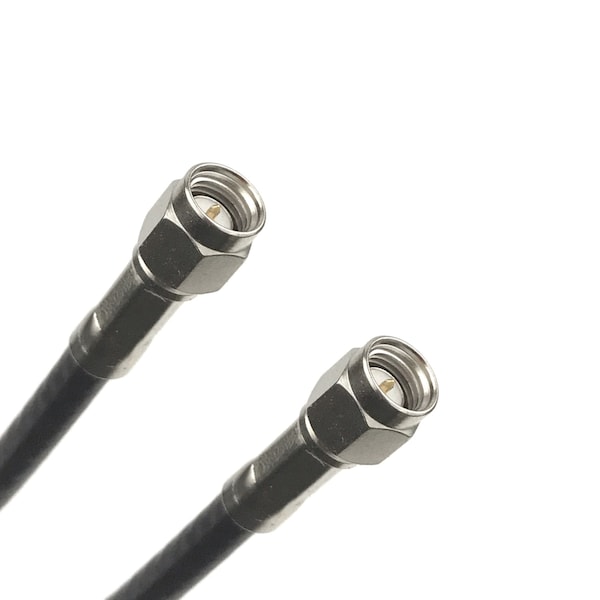

RG-58C Coaxial Cable Assembly w/SMA (Male) to SMA (Male) Connectors, 50 Ohm Impedance, 1 ft Length
| Impedance | 50 ohms |
|---|---|
| Connector B Type | SubMiniature version A Gender |
| Jacket | Black PVC (non-contaminating), Type IIA per MIL-C-17 |
| Body Material | Nickel-plated brass |
| Mating Cycles | 100 |
| Contact Material | Brass |
| Connector A Type | SubMiniature version A |
| Cable Type | RG-58C/U Coaxial |
| Overall Diameter | 0.195 in |
| Style | Straight |
| Gender | Male |
| Temperature Rating | -40°C to 80°C |
| Operating Frequency | 5 GHz |
| Voltage Rating | 500 V Maximum |
| Bend Radius | 2.0" |
| Package Quantity | 1 |
