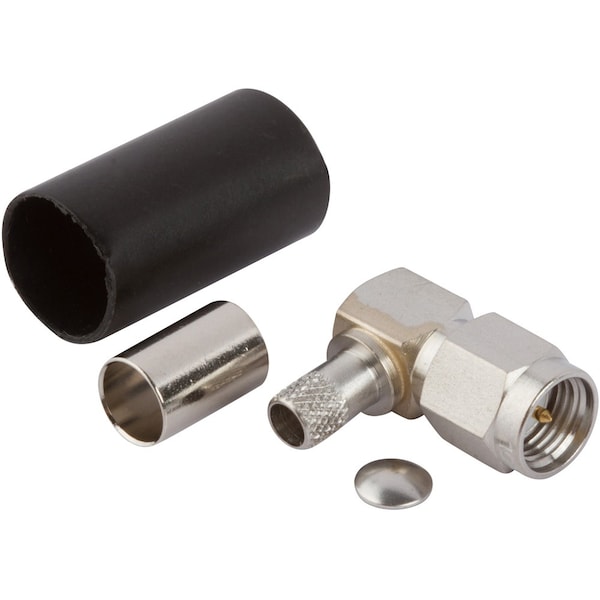

SMA Male RA Coax Connector Components, Threaded 90° Plug for RG-55, RG-142, RG-223, RG-400 Cbls
| Body Material | Passivated stainless steel |
|---|---|
| Connection to Cable | Solder & hex crimp |
| Connector Type | Coupling Type |
| Impedance | 50 ohms |
| Temperature Rating | -65°C (-85°F) to 165°C (329°F) |
| Coupling Type | 1/4" thread |
| Gender/Style | Male (Plug), Right angle (90°) |
| Insulator Material | Polytetrafluoroethylene |
| Contact Material | copper |
| Mating Cycles | 100 |
| Compatible Cable Types | RG-55, RG-55B, RG-142, RG-142B, RG-223, & RG-400 coaxial cables Connection to Cable |
| Operating Frequency | 12.4 GHz (Maximum) |
| Voltage Rating | 500 V (Maximum) |
| Package Quantity | 1 |
