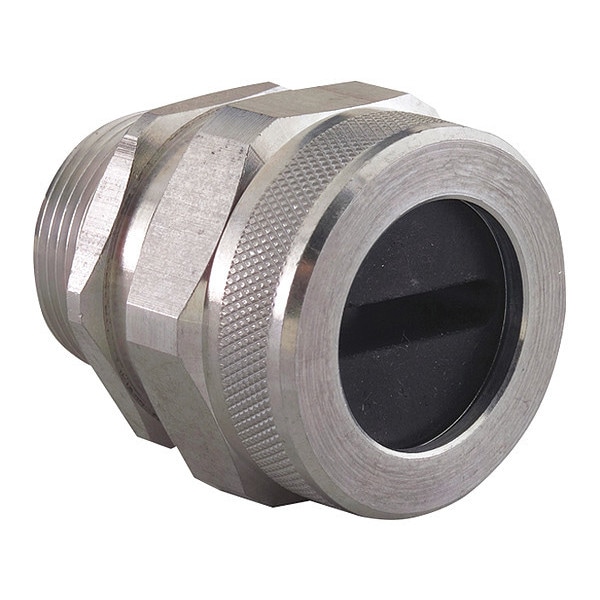

Cord Grip, 1-1/2", .75x.25 1.24x.24
| Item | Cord Grip,1-1/2",.75x.25 1.24x.24 |
|---|---|
| Conduit Size | 1.5 |
| Cord Grip Type | Straight |
| Clearance Hole (in) | 2.016 |
| Form Size | 5 |
| Max Cable Range over Jacket (in) | 0.75 |
| B Dimension (in) | 0.69 |
| Maximum Operating Temperature (F) | 250 |
| Max Cable Range over Jacket (in) 2 | 1.24 |
| E Dimension (in) | 2.47 |
| A Dimension (in) | 1.43 |
| Inside Body Diameter / Body Bore | 1.438 |
| Flammability Rating | UL 94V-2 |
| Min Cable Range over Jacket (in) | 0.25 |
| Maximum Operating Temperature (C) | 121 |
| Thread Size | 1.5 |
| Minimum Operating Temperature (C) | -40 |
| Min Cable Range over Jacket (in) 2 | 0.24 |
| D Dimension (in) | 2.25 |
| Thread Type | NPT |
| Maximum Knock Out Size (in) | 2.016 |
| Minimum Operating Temperature (F) | -40 |
| Bushing Material | Neoprene |
| Body Material | Aluminum |
| Bushing Holes | 2 |
| Connector Material | Aluminum |
| C Dimension (in) | 1.84 |
| Package Quantity | 1 |
