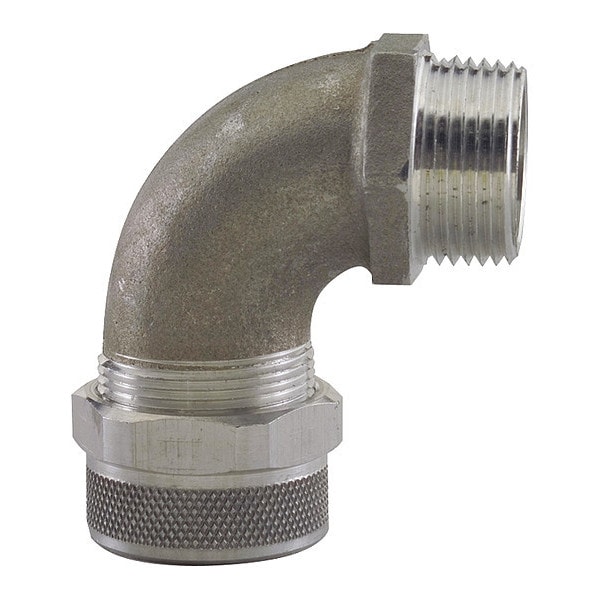

Cord Grip, Alum, 1-1/2", 1.562-1.688
| Item | Cord Grip,Alum,1-1/2",1.562-1.688 |
|---|---|
| Conduit Size | 1.5 |
| Bushing Holes | 1 |
| CSA Specification | 28,985 |
| Bushing Material | Neoprene |
| E Dimension (in) | 2.13 |
| Thread Size | 1.5 |
| Maximum Operating Temperature (C) | 121 |
| B Dimension (in) | 0.69 |
| Thread type | NPT |
| Flammability Rating | UL 94V-2 |
| Maximum Operating Temperature (F) | 250 |
| G Dimension (in) | 2.69 |
| Cable Range | 1.562 to 1.688 |
| Form Size | 5 |
| Min Cable Range over Jacket (in) | 1.562 |
| F Dimension (in) | 2.47 |
| Connector Material | Aluminum |
| Body Material | Aluminum |
| Clearance Hole (in) | 2.016 |
| Inside Body Diameter / Body Bore | 1.45 |
| Maximum Knock Out Size (in) | 2.016 |
| Hazardous Class/Division | Class 1, Div 2" |
| Max Cable Range over Jacket (in) | 1.688 |
| C Dimension (in) | 3.19 |
| Minimum Operating Temperature (F) | -40 |
| Minimum Operating Temperature (C) | -40 |
| Cord Grip Type | 90 Degree |
| D Dimension (in) | 4.41 |
| A Dimension (in) | 1.4 |
| UL Specification | E53599 |
| Package Quantity | 1 |
