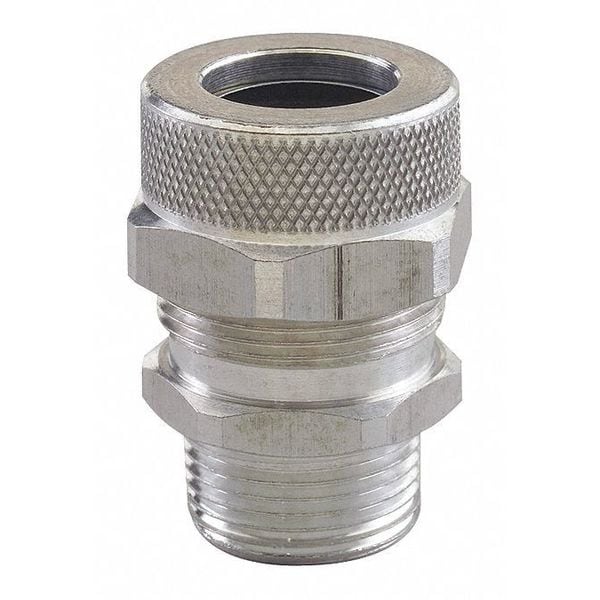

Cord Grip, Alum, 2", 1.688-1.812, Size 6
| Item | Cord Grip,Alum,2",1.688-1.812,Size 6 |
|---|---|
| Conduit Size | 2 |
| D Dimension (in) | 2.83 |
| Bushing Material | Neoprene |
| Hazardous Class/Division | Class 1, Div 2" |
| B Dimension (in) | 0.8 |
| Minimum Operating Temperature (F) | -40 |
| Thread type | NPT |
| Clearance Hole (in) | 2.5 |
| C Dimension (in) | 2.39 |
| Connector Material | Aluminum |
| Flammability Rating | UL 94V-2 |
| Max Cable Range over Jacket (in) | 1.812 |
| CSA Specification | 28,985 |
| E Dimension (in) | 2.97 |
| Cord Grip Type | Straight |
| Bushing Holes | 1 |
| Thread Size | 2 |
| Min Cable Range over Jacket (in) | 1.688 |
| Inside Body Diameter / Body Bore | 2.03 |
| A Dimension (in) | 2 |
| Cable Range | 1.688 to 1.812 |
| Body Material | Aluminum |
| Maximum Operating Temperature (C) | 121 |
| Minimum Operating Temperature (C) | -40 |
| Maximum Knock Out Size (in) | 2.5 |
| Form Size | 6 |
| Maximum Operating Temperature (F) | 250 |
| UL Specification | E53599 |
| Package Quantity | 1 |
